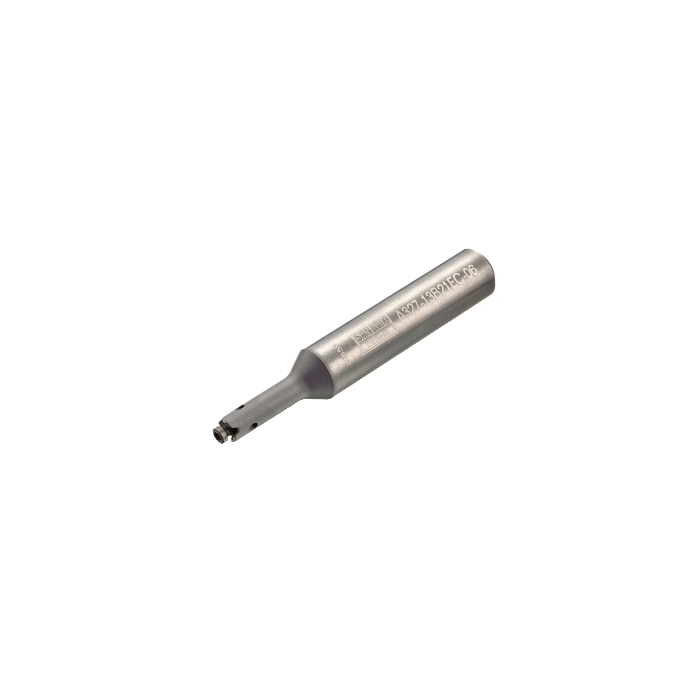

Sandvik Coromant A327-13B21EC-06 Weldon to CoroMill™ 327 adaptor
R 3 819,15
inc. vat
In stock
SKU
5722506
Weldon to CoroMill® 327 adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Weldon to CoroMill® 327 adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 6mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 76.5mm |
| BD - Body Diameter | 6mm |
| LB - Body Length | 23.849mm |
| BHTA - Body Half Taper Angle | 30deg |
| TQ - Torque | 1.8Nm |
| RPMX - Rotational Speed Maximum | 400001/min |
| WT - Weight Of Item | 142g |
| OAL - Overall Length | 76.5mm |
| OHX - Maximum Overhang | 31.27mm |
| LSC - Clamping Length | 45.24mm |
| OHN - Minimum Overhang | 23.849mm |
| H - Shank Height | 11.18mm |
| MHD - Mounting Hole Distance | 22.621875mm |
| ORDCODE | A327-13B21EC-06 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLW_R5000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CM3271_C0060_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-02-09 13:52:00.000 |
| STDLET - Standard Letter | HB |
| STDNO - Standard Number | DIN6535 |
| TCDCON - Connection Diameter Tolerance | h6 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
