Sandvik Coromant A32U-MWLNL 08 T-Max™ P boring bar for turning

R 4 961,10 inc. vat
In stock
SKU
5722479
T-Max® P boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P boring bar for turning
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 32mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 350mm
BD - Body Diameter 32mm
TQ - Torque 4.5Nm
WT - Weight Of Item 2001.4g
OAL - Overall Length 350mm
OHX - Maximum Overhang 128mm
LSC - Clamping Length 306.8mm
KAPR - Tool Cutting Edge Angle 95deg
RMPX - Maximum Ramping Angle 0deg
DMIN - Minimum Bore Diameter 40mm
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
OHN - Minimum Overhang 48mm
WF - Functional Width 22mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle -6deg
LAMS - Inclination Angle -14deg
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 0.79375mm
Insert Thickness 4.7625mm
H - Shank Height 30mm
ORDCODE A32U-MWLNL 08
ADINTMS - Adaptive Interface Machine Direction M_CYLF3_G3200_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-04-07 01:26:00.000
MTP - Clamping Type Code W
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_WN0804_1
Hand L

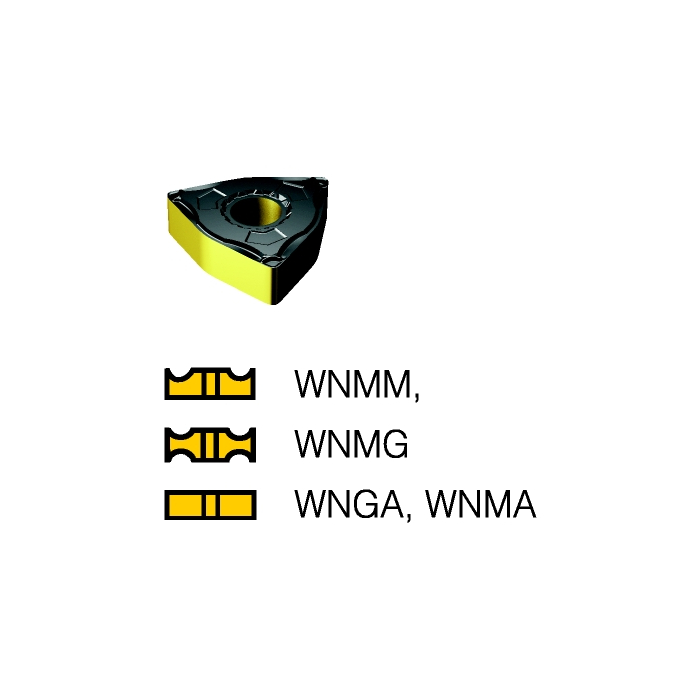

MIID - Master Insert Identification WNMG 08 04 08
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code W
SSC - Insert Seat Size Code 08
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
