Sandvik Coromant A32U-MWLNR 06 T-Max™ P boring bar for turning
R 4 961,10
inc. vat
In stock
SKU
5722483
T-Max® P boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P boring bar for turning
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 350mm |
| BD - Body Diameter | 32mm |
| TQ - Torque | 3.5Nm |
| WT - Weight Of Item | 2kg |
| OAL - Overall Length | 350mm |
| OHX - Maximum Overhang | 128mm |
| LSC - Clamping Length | 306.8mm |
| KAPR - Tool Cutting Edge Angle | 95deg |
| RMPX - Maximum Ramping Angle | 0deg |
| DMIN - Minimum Bore Diameter | 40mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| OHN - Minimum Overhang | 48mm |
| WF - Functional Width | 22mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | -6deg |
| LAMS - Inclination Angle | -14deg |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.79375mm |
| Insert Thickness | 4.7625mm |
| H - Shank Height | 30mm |
| ORDCODE | A32U-MWLNR 06 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_G3200_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-07 01:26:00.000 |
| MTP - Clamping Type Code | W |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_WN0604_1 |
| Hand | R |

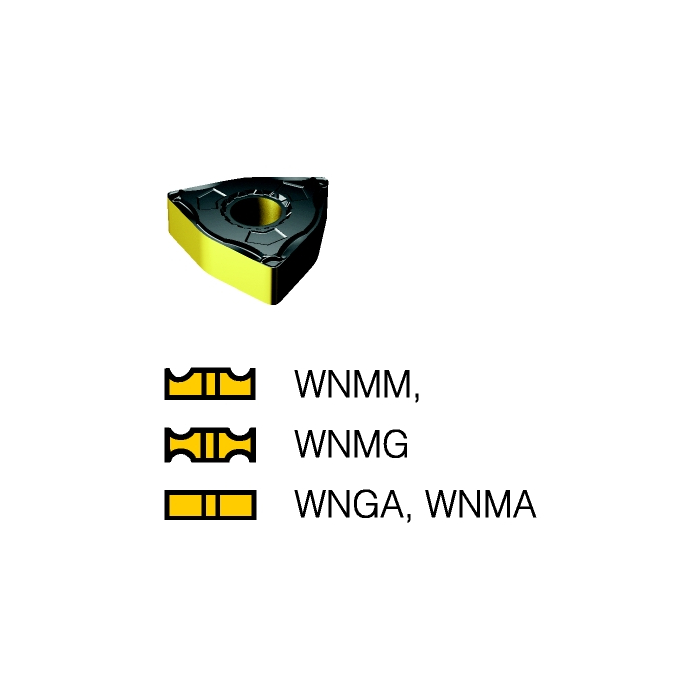

| MIID - Master Insert Identification | WNMG 06 04 08 |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | W |
| SSC - Insert Seat Size Code | 06 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
