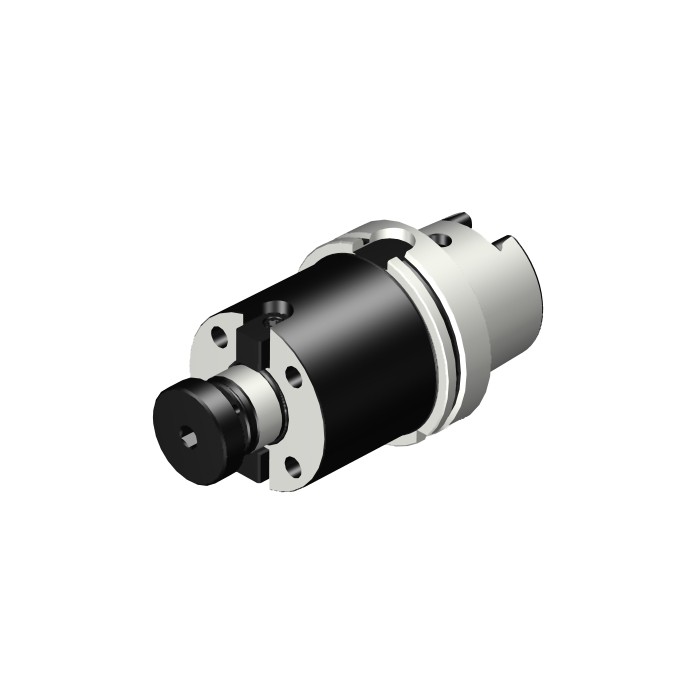

Sandvik Coromant A392.41005C10038100M HSK to arbor adaptor

Name: Sandvik Coromant A392.41005C10038100M HSK to arbor adaptor
SKU: 6228957
Price: 6415.85 ZAR
Availability: OutOfStock

R 6 415,85 inc. vat

Out of stock

SKU

6228957

HSK to arbor adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

HSK to arbor adaptor

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	75.013mm
DCON - Connection Diameter	38.1mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	100mm
BD - Body Diameter	100mm
LB - Body Length	100mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	220Nm
RPMX - Rotational Speed Maximum	125001/min
WT - Weight Of Item	5.463kg
OAL - Overall Length	150mm
OHX - Maximum Overhang	100mm
DBC - Diameter Bolt Circle	66.7mm
ORDCODE	A392.41005C10038100M
ADINTMS - Adaptive Interface Machine Direction	M_HSK01_C1000_1
ADINTWS - Adaptive Interface Workpiece Direction	W_FDA1ABC_S1500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	4
BMC - Body Material Code	1
CHANGEDATE	2022-09-04 01:04:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	DIN69893-1
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
