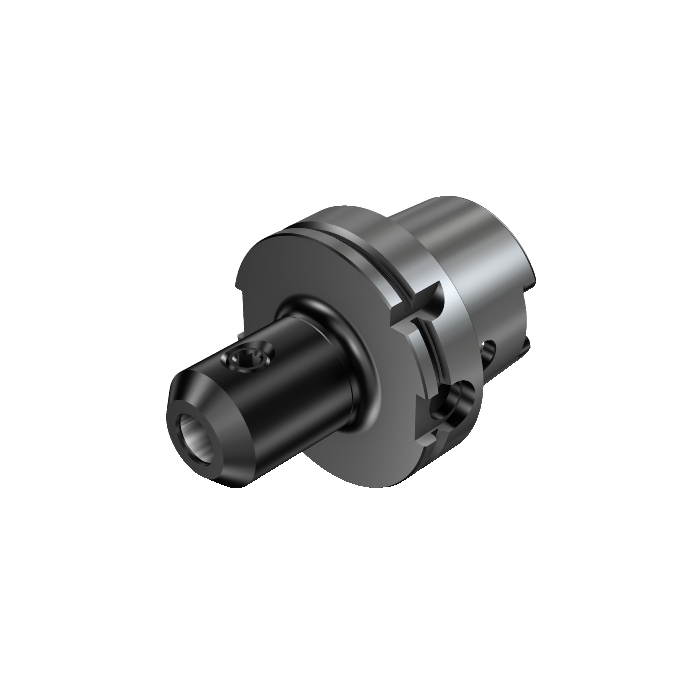

Sandvik Coromant A392.41020-100 31 100A HSK to Weldon adaptor

Name: Sandvik Coromant A392.41020-100 31 100A HSK to Weldon adaptor
SKU: 5722834
Price: 4926.60 ZAR
Availability: InStock

R 4 926,60 inc. vat

In stock

SKU

5722834

HSK to Weldon adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

HSK to Weldon adaptor

More Information
CP - Coolant Pressure	2000000Pa
DFC - Functional Diameter	75.013mm
DCON - Connection Diameter	31.75mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	99.9998mm
BD - Body Diameter	100mm
LB - Body Length	100mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	45Nm
RPMX - Rotational Speed Maximum	125001/min
WT - Weight Of Item	3349.9g
OAL - Overall Length	150mm
OHX - Maximum Overhang	99.9998mm
LSC - Clamping Length	64mm
ORDCODE	A392.41020-100 31 100A
ADINTMS - Adaptive Interface Machine Direction	M_HSK01_C1000_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CYLW_S1250_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2021-12-21 00:59:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	DIN69893-1
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
