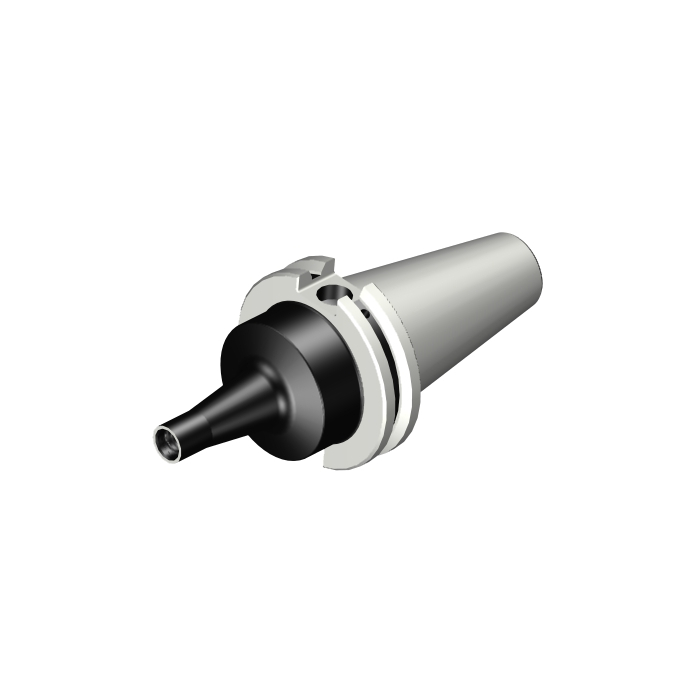

Sandvik Coromant A392.45EH-40 12 078 CAT-V to Coromant EH adaptor

Name: Sandvik Coromant A392.45EH-40 12 078 CAT-V to Coromant EH adaptor
SKU: 6048686
Price: 5798.30 ZAR
Availability: InStock

R 5 798,30 inc. vat

In stock

SKU

6048686

CAT-V to Coromant EH adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CAT-V to Coromant EH adaptor

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	44.45mm
DCON - Connection Diameter	12.2mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	78mm
BD - Body Diameter	63.5mm
LB - Body Length	78mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	15Nm
RPMX - Rotational Speed Maximum	180001/min
WT - Weight Of Item	1.092kg
OAL - Overall Length	146.4mm
OHX - Maximum Overhang	78mm
ORDCODE	A392.45EH-40 12 078
ADINTMS - Adaptive Interface Machine Direction	M_SKG31_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SAT01_B0120_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
CRKS - Connection Retention Knob Thread Size	5/8"-11
BMC - Body Material Code	1
CHANGEDATE	2022-06-20 07:51:00.000
STDLET - Standard Letter	AD
STDNO - Standard Number	ASME B5.50
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
