Sandvik Coromant A392.45T-40 10 098 CAT-V to MSSC adaptor
R 4 872,55
inc. vat
Out of stock
SKU
5723559
CAT-V to MSSC adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days

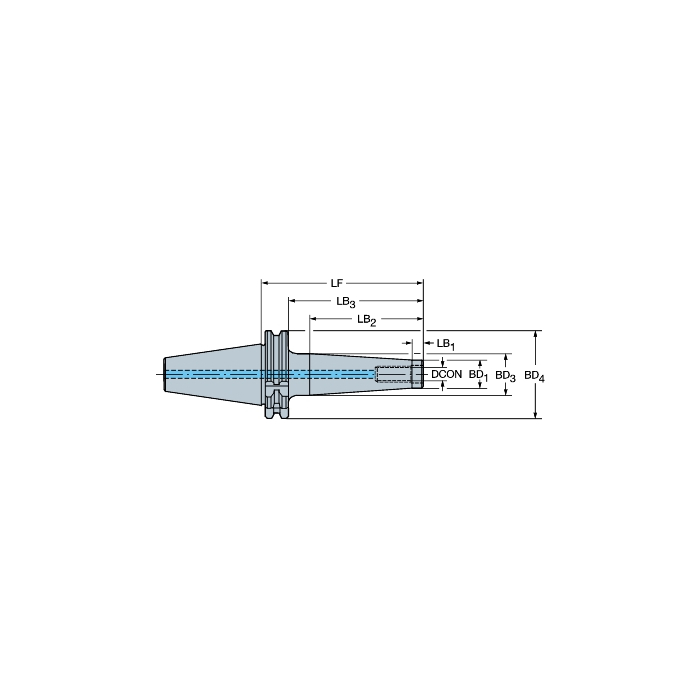

CAT-V to MSSC adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DFC - Functional Diameter | 44.45mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 97.9932mm |
| BD - Body Diameter | 63.5mm |
| LB - Body Length | 98mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 12Nm |
| WT - Weight Of Item | 1.117kg |
| OAL - Overall Length | 166.393mm |
| OHX - Maximum Overhang | 97.9932mm |
| ORDCODE | A392.45T-40 10 098 |
| ADINTMS - Adaptive Interface Machine Direction | M_SKG37_C0400_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SAC03_A0100_1 |
| CNSC - Coolant Entry Style Code | 7 |
| CXSC - Coolant Exit Style Code | 1 |
| CRKS - Connection Retention Knob Thread Size | 5/8"-11 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-27 19:10:00.000 |
| STDLET - Standard Letter | AD/B |
| STDNO - Standard Number | ASME B5.50 |
| TDZ - Thread Diameter Size | M 10 |
| DPC - Damping Property | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
