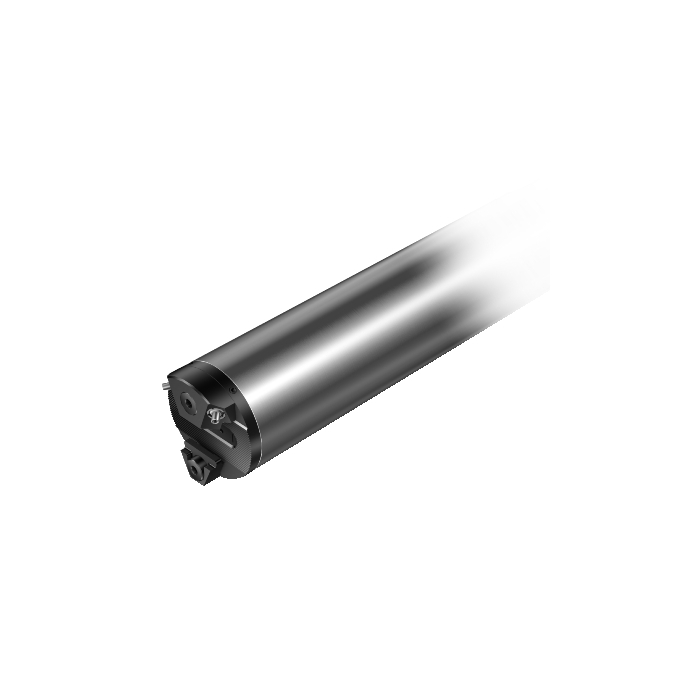

Sandvik Coromant A570-3C D64 44 Cylindrical shank to CoroTurn™ SL quick change damped adaptor

Name: Sandvik Coromant A570-3C D64 44 Cylindrical shank to CoroTurn™ SL quick change damped adaptor
SKU: 5723612
Price: 103027.35 ZAR
Availability: OutOfStock

Be the first to review this product

R 103 027,35 inc. vat

Out of stock

SKU

5723612

Cylindrical shank to CoroTurn® SL quick change damped adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Cylindrical shank to CoroTurn® SL quick change damped adaptor

More Information

More Information
CP - Coolant Pressure	7000000Pa
DCON - Connection Diameter	100mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	1117.6mm
BD - Body Diameter	101.6mm
LB - Body Length	1117.6mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	50Nm
WT - Weight Of Item	66.3kg
OAL - Overall Length	1133.1mm
OHX - Maximum Overhang	666.2mm
LSC - Clamping Length	702mm
BAWS - Workpiece Side Body Angle	0deg
OHN - Minimum Overhang	415mm
WF - Functional Width	0mm
HF - Functional Height	0mm
LPR - Protruding Length	1117.6mm
ADJLN - Minimum Adjustment Limit	0mm
ADJLX - Maximum Adjustment Limit	21mm
ORDCODE	A570-3C D64 44
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_S4000_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SLHDQ_C1000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-05-23 19:18:00.000
Hand	N
CNT - Coolant Entry Thread Size	G 3/4-14
DPC - Damping Property	True
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
LOCAP - Location Aid Property	False
ADJBY - Adjustability	True
