R 172 800,15
inc. vat
Out of stock
SKU
5723653

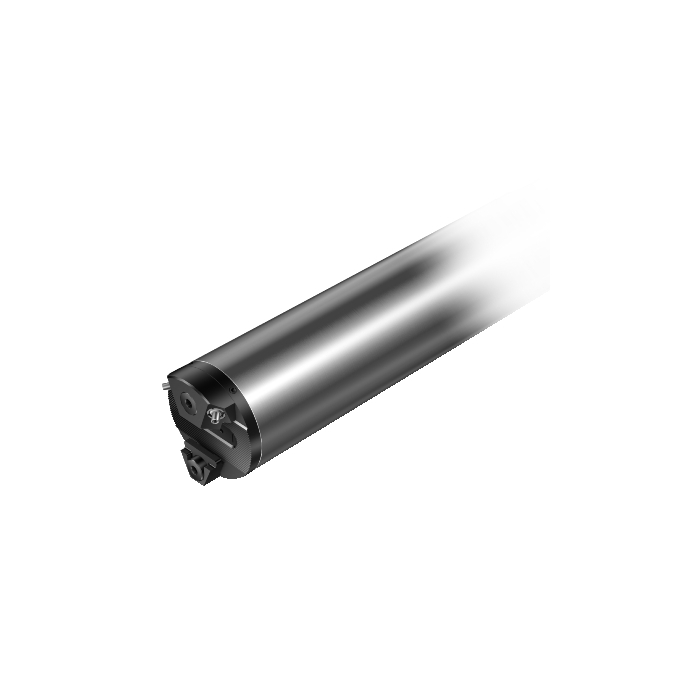

Cylindrical shank to CoroTurn® SL quick change damped adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank to CoroTurn® SL quick change damped adaptor
CP - Coolant Pressure | 7000000Pa |
---|---|
DCON - Connection Diameter | 100mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 1524mm |
BD - Body Diameter | 101.6mm |
LB - Body Length | 1524mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 50Nm |
WT - Weight Of Item | 91kg |
OAL - Overall Length | 1539.5mm |
OHX - Maximum Overhang | 971mm |
LSC - Clamping Length | 1109mm |
BAWS - Workpiece Side Body Angle | 0deg |
OHN - Minimum Overhang | 415mm |
WF - Functional Width | 0mm |
HF - Functional Height | 0mm |
LPR - Protruding Length | 1524mm |
ADJLN - Minimum Adjustment Limit | 0mm |
ADJLX - Maximum Adjustment Limit | 21mm |
ORDCODE | A570-3C D64 60 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_S4000_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDQ_C1000_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-05-23 19:18:00.000 |
Hand | N |
CNT - Coolant Entry Thread Size | G 3/4-14 |
DPC - Damping Property | True |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
LOCAP - Location Aid Property | False |
ADJBY - Adjustability | True |
