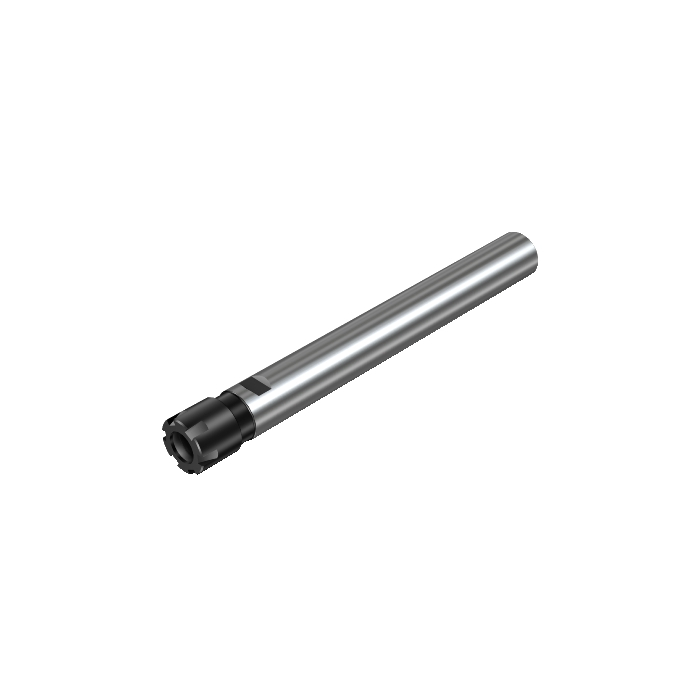

Sandvik Coromant A393.14-19 25 203 Cylindrical shank to ER collet chuck
R 3 730,60
inc. vat
In stock
SKU
5722948
Cylindrical shank to ER collet chuck
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank to ER collet chuck
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DFC - Functional Diameter | 25mm |
| DCON - Connection Diameter | 26mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 191.7mm |
| BD - Body Diameter | 41.7mm |
| LB - Body Length | 203mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 4.3Nm |
| WT - Weight Of Item | 0.48kg |
| OAL - Overall Length | 203mm |
| OHX - Maximum Overhang | 140.7mm |
| LSC - Clamping Length | 152mm |
| ORDCODE | A393.14-19 25 203 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R7500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CLTERB_C0250_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-20 22:35:00.000 |
| DPC - Damping Property | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
