Sandvik Coromant A40T-DTFNR 22 T-Max™ P boring bar for turning

Name: Sandvik Coromant A40T-DTFNR 22 T-Max™ P boring bar for turning
SKU: 5723954
Price: 5533.80 ZAR
Availability: InStock

R 5 533,80 inc. vat

In stock

SKU

5723954

T-Max® P boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® P boring bar for turning

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	300mm
BD - Body Diameter	40mm
TQ - Torque	3.9Nm
WT - Weight Of Item	2.454kg
OAL - Overall Length	300mm
OHX - Maximum Overhang	160mm
LSC - Clamping Length	260mm
KAPR - Tool Cutting Edge Angle	91deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	50mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	60mm
WF - Functional Width	27mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	-6deg
LAMS - Inclination Angle	-13deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	12.7mm
RE - Corner Radius	0.79375mm
Insert Thickness	4.7625mm
H - Shank Height	37mm
ORDCODE	A40T-DTFNR 22
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_G4000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-13 14:48:00.000
MTP - Clamping Type Code	D
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_TN2204_3
Hand	R

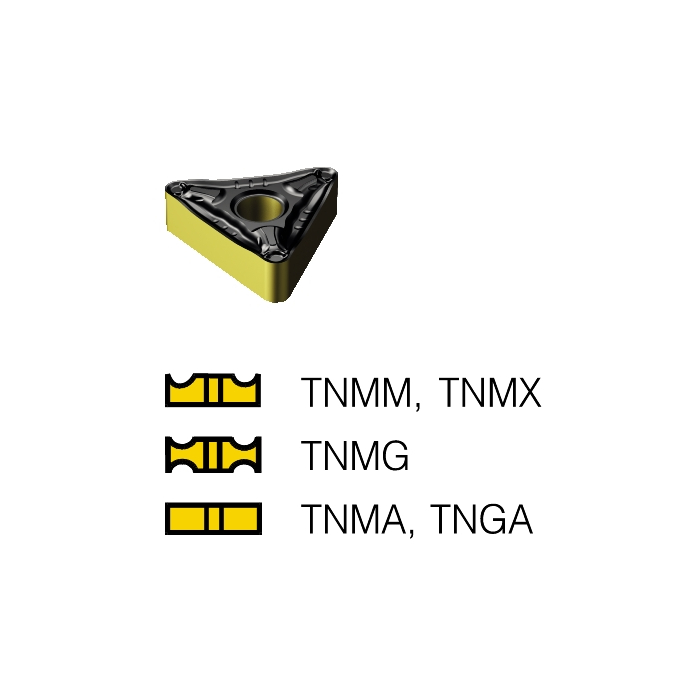

MIID - Master Insert Identification	TNMG 22 04 08
IFS - Insert Mounting Style Code	2
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	22
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
