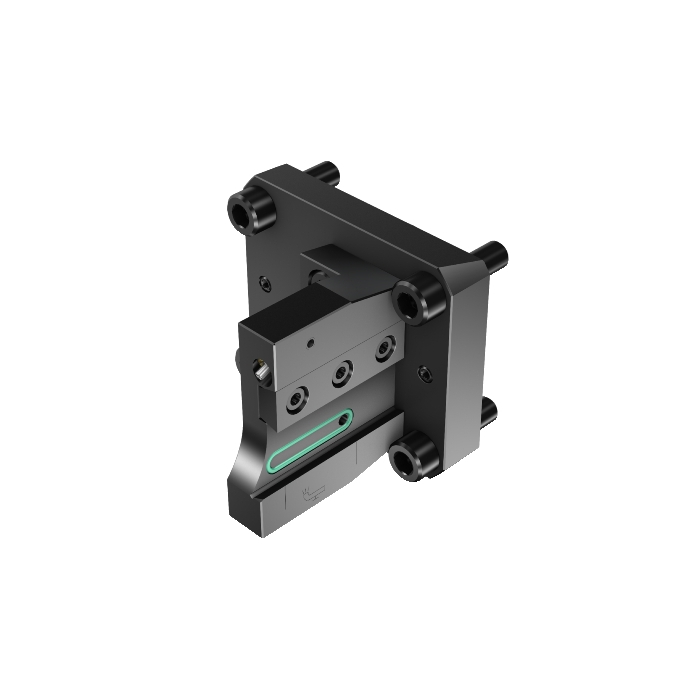

Sandvik Coromant APBR-OK55A-21-HP Okuma turret interface to blade adaptor
R 22 709,05
inc. vat
Out of stock
SKU
6830274
Okuma turret interface to blade adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Okuma turret interface to blade adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DCON - Connection Diameter | 55mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 86mm |
| TQ - Torque | 10Nm |
| WT - Weight Of Item | 2.353kg |
| OAL - Overall Length | 103mm |
| OHX - Maximum Overhang | 86mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 26mm |
| HF - Functional Height | 21mm |
| LPR - Protruding Length | 86mm |
| OAH - Overall Height | 87mm |
| OAW - Overall Width | 100mm |
| ORDCODE | APBR-OK55A-21-HP |
| ADINTMS - Adaptive Interface Machine Direction | M_FLC02FN_C055N_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_PMC012_C021R_1 |
| CNSC - Coolant Entry Style Code | 7 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-05-04 11:20:00.000 |
| Hand | R |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
