Sandvik Coromant APBR-OK55A-21-HP Okuma turret interface to blade adaptor
Next
Sandvik Coromant C4-TLI-FJ-A Manual clamping unit for Fuji machines
Previous
![Sandvik Coromant APBR-OK55A-21-HP Okuma turret interface to blade adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/601718c08/sandvik-coromant-apbr-ok55a-21-hp-okuma-turret-interface-to-blade-adaptor.jpg)
![Sandvik Coromant C4-TLI-FJ-A Manual clamping unit for Fuji machines](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/600361fde/sandvik-coromant-c4-tli-fj-a-manual-clamping-unit-for-fuji-machines.jpg)
R 22 709,05
inc. vat
Out of stock
SKU
6830273

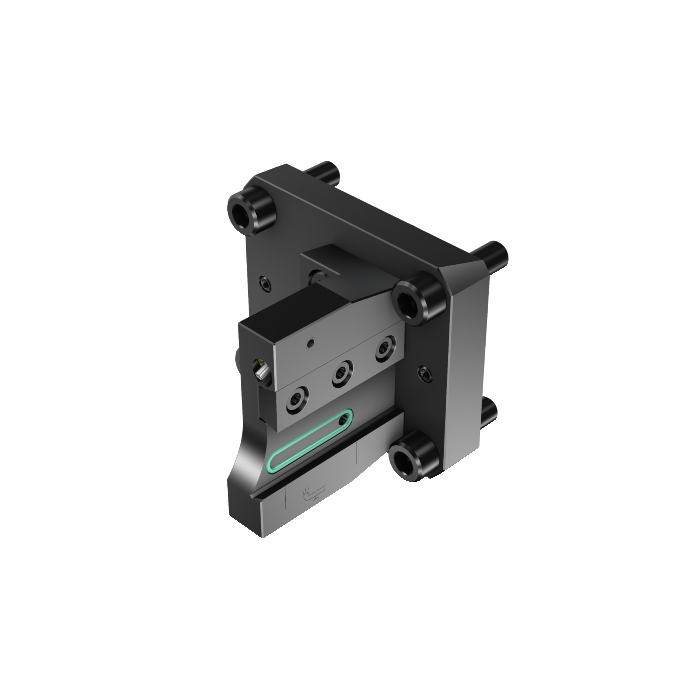

Okuma turret interface to blade adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Okuma turret interface to blade adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DCON - Connection Diameter | 55mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 86mm |
TQ - Torque | 10Nm |
WT - Weight Of Item | 2.354kg |
OAL - Overall Length | 103mm |
OHX - Maximum Overhang | 86mm |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 26mm |
HF - Functional Height | 21mm |
LPR - Protruding Length | 86mm |
OAH - Overall Height | 87mm |
OAW - Overall Width | 100mm |
ORDCODE | APBL-OK55A-21-HP |
ADINTMS - Adaptive Interface Machine Direction | M_FLC02FN_C055N_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_PMC012_C021L_1 |
CNSC - Coolant Entry Style Code | 7 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-05-04 11:20:00.000 |
Hand | L |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
