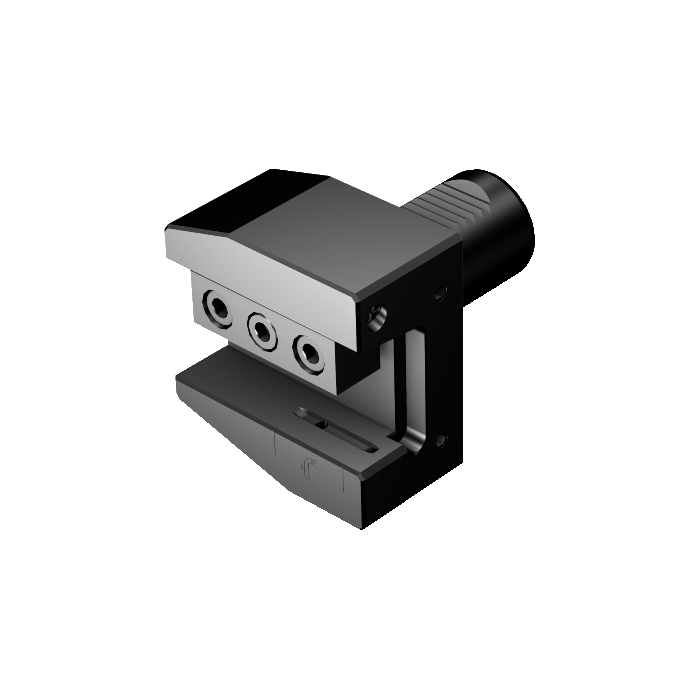

Sandvik Coromant ASHA-L-VDI50-25-HP VDI to rectangular shank adaptor
R 8 395,00
inc. vat
Out of stock
SKU
6472358
VDI to rectangular shank adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
VDI to rectangular shank adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DCON - Connection Diameter | 50mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 23mm |
| TQ - Torque | 25Nm |
| WT - Weight Of Item | 4.421kg |
| OAL - Overall Length | 123mm |
| OHX - Maximum Overhang | 23mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 50mm |
| HF - Functional Height | 25mm |
| LPR - Protruding Length | 48mm |
| OAH - Overall Height | 110mm |
| OAW - Overall Width | 100mm |
| ORDCODE | ASHA-L-VDI50-25-HP |
| ADINTMS - Adaptive Interface Machine Direction | M_ZYV01A_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_VKT01_A2525_1 |
| CNSC - Coolant Entry Style Code | 6 |
| CXSC - Coolant Exit Style Code | 6 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-01 09:48:00.000 |
| Hand | L |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
