Sandvik Coromant C8-4-SL40 113 180-AX Coromant Capto™ miniturret for four CoroTurn™ SL heads
R 13 590,70
inc. vat
Out of stock
SKU
6451666

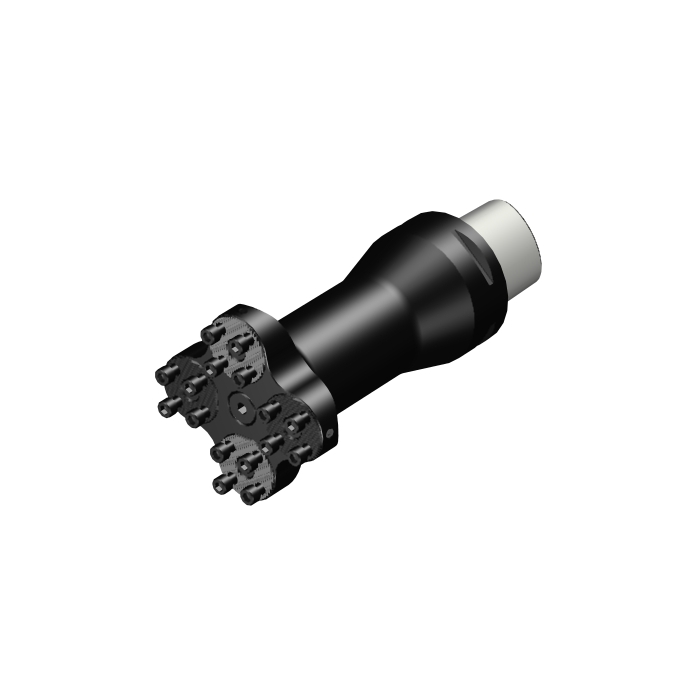

Coromant Capto® miniturret for four CoroTurn® SL heads
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® miniturret for four CoroTurn® SL heads
| CP - Coolant Pressure | 15000000Pa |
|---|---|
| DFC - Functional Diameter | 55mm |
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 90deg |
| LF - Functional Length | 180mm |
| TQ - Torque | 17Nm |
| WT - Weight Of Item | 6.045kg |
| OAL - Overall Length | 228mm |
| OHX - Maximum Overhang | 180mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 36mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 180mm |
| OAH - Overall Height | 113mm |
| OAW - Overall Width | 113mm |
| ORDCODE | C8-4-SL40 113 180-AX |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0800_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSS_C0400_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-03-29 10:02:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| Hand | N |
| CCONWS - Workpiece Side Connection Count | 4 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
