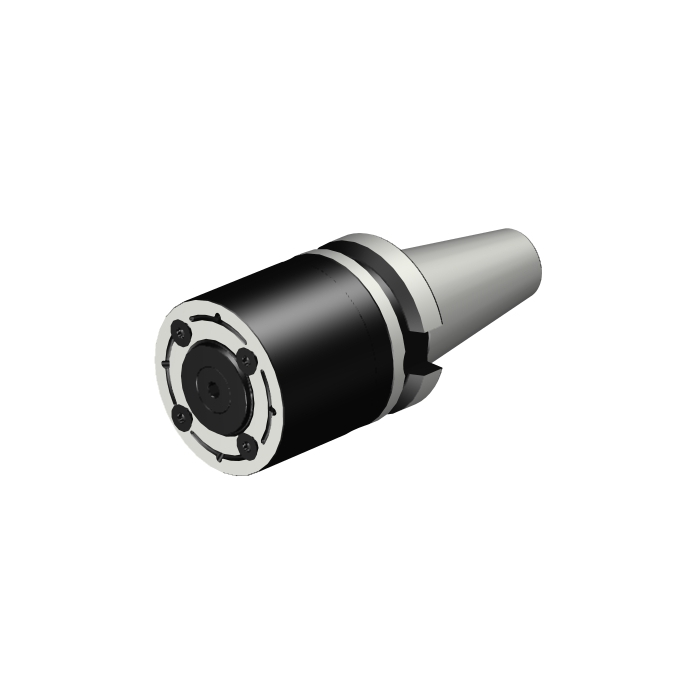

Sandvik Coromant B40-X32-063-080 MAS-BT to arbor with driving screws adaptor
R 8 045,40
inc. vat
Out of stock
SKU
6718409
MAS-BT to arbor with driving screws adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
MAS-BT to arbor with driving screws adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 44.45mm |
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 80mm |
| BD - Body Diameter | 63mm |
| LB - Body Length | 80mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 6.4Nm |
| RPMX - Rotational Speed Maximum | 100001/min |
| WT - Weight Of Item | 2.261kg |
| OAL - Overall Length | 147.8mm |
| OHX - Maximum Overhang | 80mm |
| LSC - Clamping Length | 2.4mm |
| DBC - Diameter Bolt Circle | 45mm |
| ORDCODE | B40-X32-063-080 |
| ADINTMS - Adaptive Interface Machine Direction | M_SKG57_C0400_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_FDAC24_C0X32_1 |
| CNSC - Coolant Entry Style Code | 7 |
| CXSC - Coolant Exit Style Code | 3 |
| CRKS - Connection Retention Knob Thread Size | M16 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-25 15:47:00.000 |
| STDLET - Standard Letter | AD/B |
| STDNO - Standard Number | MAS403-BT |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
