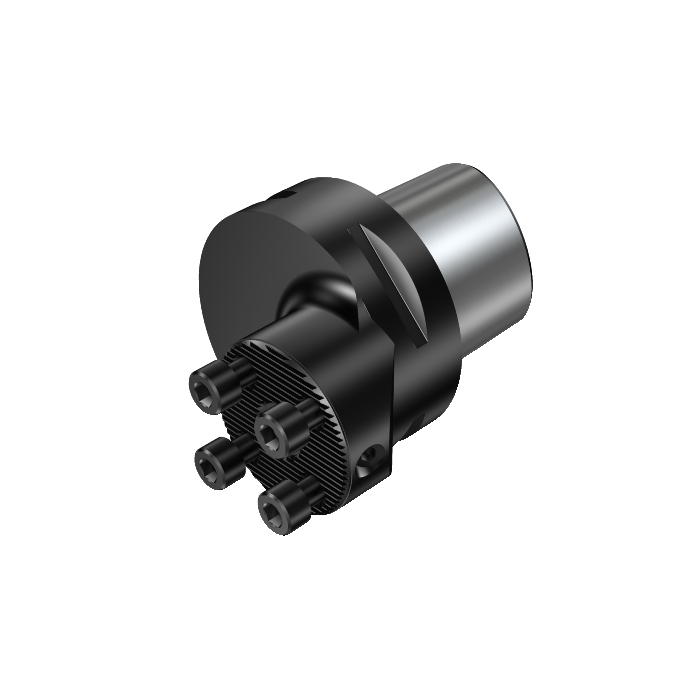

Sandvik Coromant C10-570-40-RG Coromant Capto™ to CoroTurn™ SL adaptor
R 10 024,55
inc. vat
Out of stock
SKU
5957917
Coromant Capto® to CoroTurn® SL adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to CoroTurn® SL adaptor
| CP - Coolant Pressure | 15000000Pa |
|---|---|
| DFC - Functional Diameter | 72mm |
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 78mm |
| TQ - Torque | 17Nm |
| WT - Weight Of Item | 4008g |
| OAL - Overall Length | 138mm |
| OHX - Maximum Overhang | 78mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 30mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 78mm |
| ORDCODE | C10-570-40-RG |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C1000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSS_C0400_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| DCPS - Data Chip Provision Size | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-05-04 11:08:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| Hand | R |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | True |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
