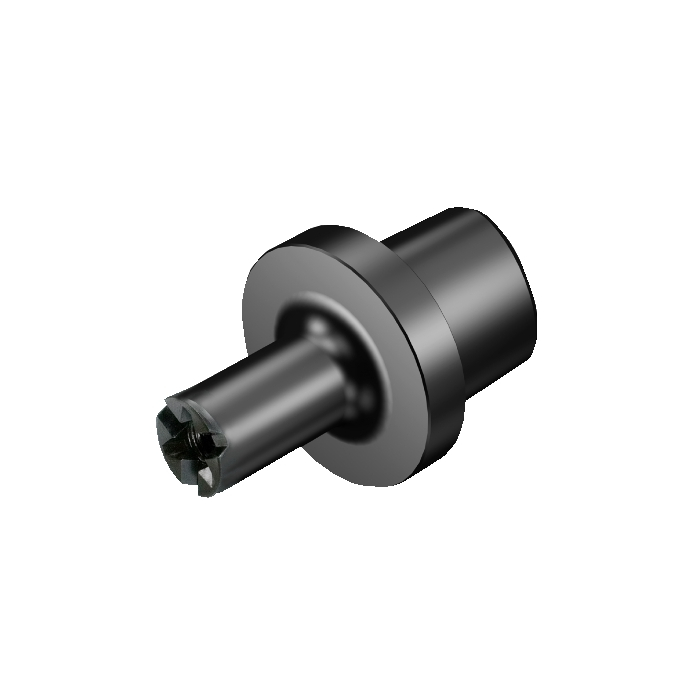

Sandvik Coromant C3-391.327-06 029 Coromant Capto™ to CoroMill™ 327 adaptor
R 4 677,05
inc. vat
Out of stock
SKU
6265066
Coromant Capto® to CoroMill® 327 adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to CoroMill® 327 adaptor
| DFC - Functional Diameter | 22mm |
|---|---|
| DCON - Connection Diameter | 6mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 29mm |
| BD - Body Diameter | 32mm |
| LB - Body Length | 29mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 1.8Nm |
| RPMX - Rotational Speed Maximum | 550001/min |
| WT - Weight Of Item | 0.136kg |
| OAL - Overall Length | 48mm |
| OHX - Maximum Overhang | 29mm |
| ORDCODE | C3-391.327-06 029 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS02_C0320_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CM3271_C0060_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-21 07:12:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
