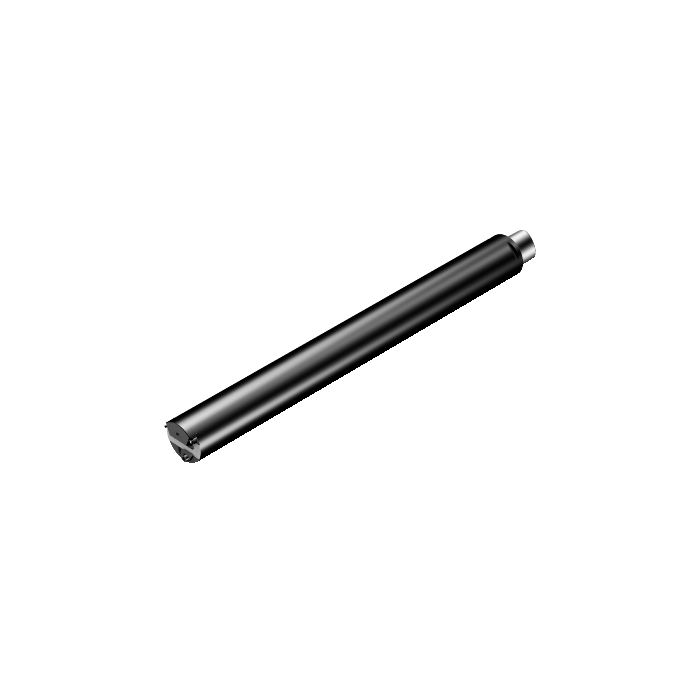

Sandvik Coromant C10-570-3C100955-80 Coromant Capto™ to CoroTurn™ SL quick change damped adaptor

Name: Sandvik Coromant C10-570-3C100955-80 Coromant Capto™ to CoroTurn™ SL quick change damped adaptor
SKU: 6264629
Price: 235359.00 ZAR
Availability: OutOfStock

Be the first to review this product

R 235 359,00 inc. vat

Out of stock

SKU

6264629

Coromant Capto® to CoroTurn® SL quick change damped adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Coromant Capto® to CoroTurn® SL quick change damped adaptor

More Information

More Information
CP - Coolant Pressure	7000000Pa
DFC - Functional Diameter	72mm
DCON - Connection Diameter	100mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	955mm
BD - Body Diameter	100mm
LB - Body Length	955mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	50Nm
WT - Weight Of Item	55.8kg
OAL - Overall Length	1035.5mm
OHX - Maximum Overhang	955mm
BAWS - Workpiece Side Body Angle	0deg
OHN - Minimum Overhang	955mm
WF - Functional Width	0mm
HF - Functional Height	0mm
LPR - Protruding Length	955mm
ADJLN - Minimum Adjustment Limit	0mm
ADJLX - Maximum Adjustment Limit	21mm
ORDCODE	C10-570-3C100955-80
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C1000_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SLHDQ_C1000_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-05-23 19:22:00.000
STDNO - Standard Number	ISO26623-1
Hand	N
DPC - Damping Property	True
DCP - Data Chip Provision	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
ADJBY - Adjustability	True
