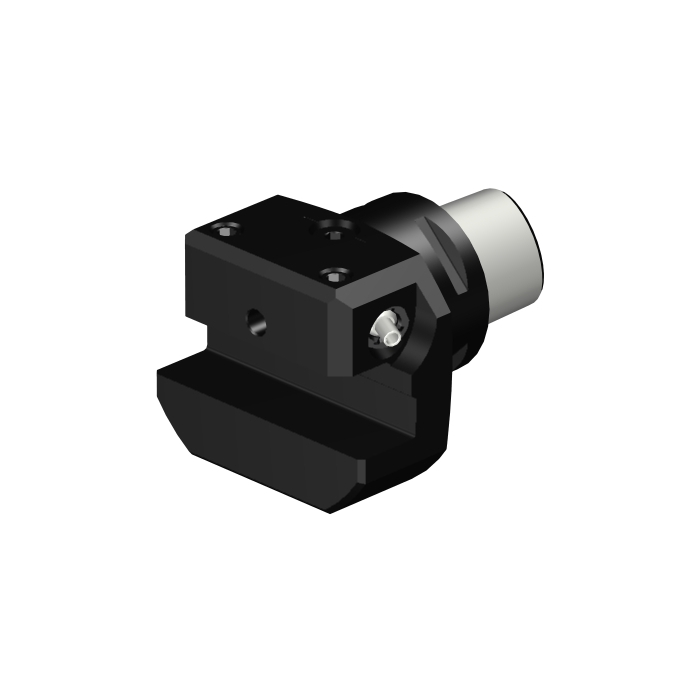

Sandvik Coromant C3-ASHA-25040-12 Coromant Capto™ to rectangular shank adaptor
R 6 548,10
inc. vat
In stock
SKU
6078844
Coromant Capto® to rectangular shank adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to rectangular shank adaptor
| CP - Coolant Pressure | 20000000Pa |
|---|---|
| DFC - Functional Diameter | 22mm |
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 28mm |
| WT - Weight Of Item | 0.387kg |
| OAL - Overall Length | 59mm |
| OHX - Maximum Overhang | 28mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 25mm |
| HF - Functional Height | 12mm |
| LPR - Protruding Length | 40mm |
| OAH - Overall Height | 41.5mm |
| OAW - Overall Width | 50mm |
| RADH - Radial Body Height | 25mm |
| RADW - Radial Body Width | 50mm |
| DIX - Maximum Tool Changer Interference Diameter | 60mm |
| ORDCODE | C3-ASHA-25040-12 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0320_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_VKT01_A1212_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 6 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 15:04:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| Hand | L |
| CCONWS - Workpiece Side Connection Count | 1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
