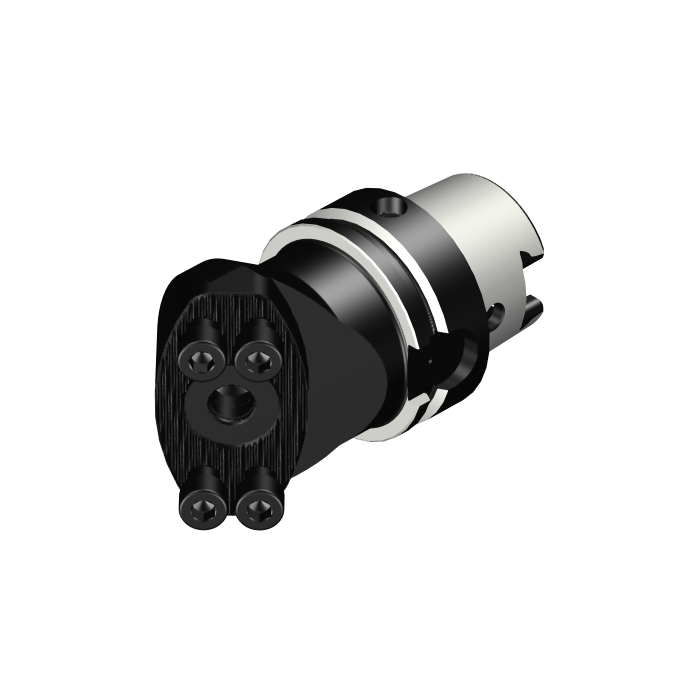

Sandvik Coromant 392.T63SL70RG HSK to CoroTurn™ SL70 adaptor
Previous
![Sandvik Coromant C3-ASHA-25040-12 Coromant Capto™ to rectangular shank adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/553135989/sandvik-coromant-c3-asha-25040-12-coromant-captotm-to-rectangular-shank-adaptor.jpg)
![Sandvik Coromant 392.T63SL70RG HSK to CoroTurn™ SL70 adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/5529584aa/sandvik-coromant-392-t63sl70rg-hsk-to-coroturntm-sl70-adaptor.jpg)
R 10 442,00
inc. vat
Out of stock
SKU
6078824
HSK to CoroTurn® SL70 adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to CoroTurn® SL70 adaptor
CP - Coolant Pressure | 15000000Pa |
---|---|
DFC - Functional Diameter | 48.01mm |
DCON - Connection Diameter | 63mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 70mm |
TQ - Torque | 30Nm |
WT - Weight Of Item | 1.488kg |
OAL - Overall Length | 115.7mm |
OHX - Maximum Overhang | 70mm |
BAWS - Workpiece Side Body Angle | 45deg |
WF - Functional Width | 5mm |
HF - Functional Height | 0mm |
LPR - Protruding Length | 84mm |
OAW - Overall Width | 70mm |
WSC - Clamping Width | 70mm |
ORDCODE | 392.T63SL70RX-045 |
ADINTMS - Adaptive Interface Machine Direction | M_HSK07_C0630_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSA2_C0700_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
DCPS - Data Chip Provision Size | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-03-18 04:24:00.000 |
STDLET - Standard Letter | T |
STDNO - Standard Number | DIN69893-7 |
Hand | R |
DPC - Damping Property | False |
DCP - Data Chip Provision | True |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
