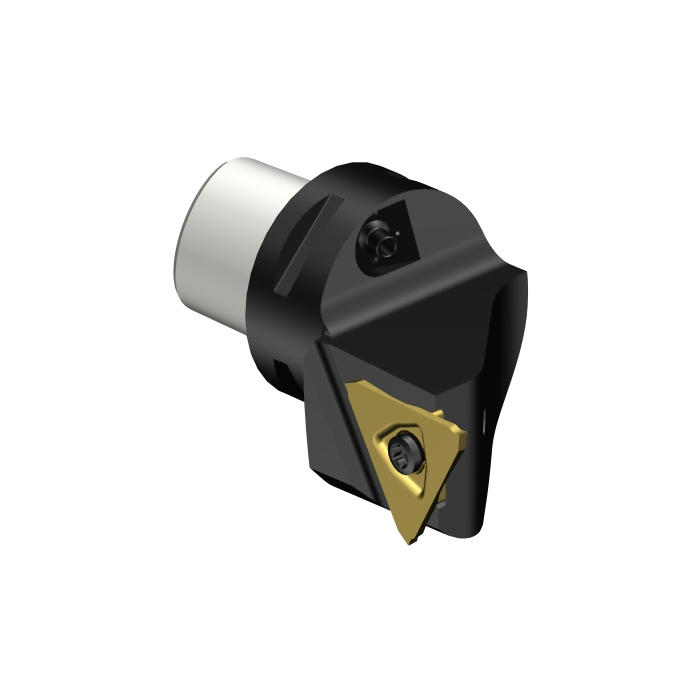

Sandvik Coromant C3-LF123U06-22045BM CoroCut™ 3 cutting unit for parting and grooving
R 3 908,85
inc. vat
In stock
SKU
5726872
CoroCut® 3 cutting unit for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 3 cutting unit for parting and grooving
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DFC - Functional Diameter | 22mm |
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 45mm |
| TQ - Torque | 3Nm |
| WT - Weight Of Item | 0.187kg |
| OAL - Overall Length | 64mm |
| OHX - Maximum Overhang | 45mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 22mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 5.64mm |
| CW - Cutting Width | 1.5mm |
| CDX - Cutting Depth Maximum | 6.35mm |
| ORDCODE | C3-LF123U06-22045BM |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0320_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 5 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 14:32:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CDU_1 |
| Hand | L |
| MIID - Master Insert Identification | N123U3-0150- CM |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | U |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
