Sandvik Coromant C3-TRE-MA-D Manual clamping unit for Murata machines Previous Sandvik Coromant C3-TRE-MA-D Manual clamping unit for Murata machines

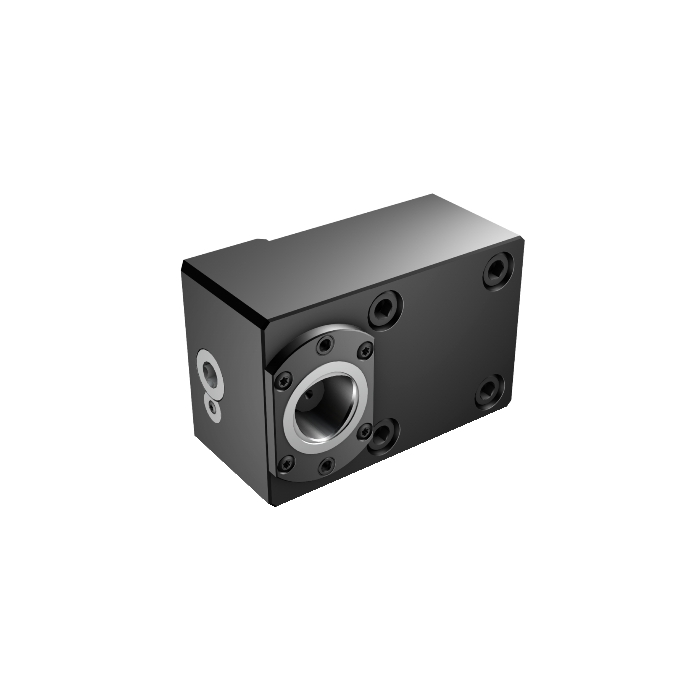

Sandvik Coromant C3-TLE-MA-D Manual clamping unit for Murata machines

R 24 457,05 inc. vat
Out of stock
SKU
7075532
Manual clamping unit for Murata machines
Reliable nationwide shipping
Delivery in 4 - 5 days
Manual clamping unit for Murata machines
More Information
CP - Coolant Pressure 8000000Pa
DFC - Functional Diameter 22mm
DCON - Connection Diameter 32mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 60mm
TQ - Torque 35Nm
WT - Weight Of Item 2.4kg
OAL - Overall Length 72.5mm
OHX - Maximum Overhang 60mm
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 45mm
HF - Functional Height 0mm
LPR - Protruding Length 60mm
OAH - Overall Height 80mm
OAW - Overall Width 117mm
ORDCODE C3-TLE-MA-D
ADINTMS - Adaptive Interface Machine Direction M_FLC02IN_CDN_1
ADINTWS - Adaptive Interface Workpiece Direction W_CCS02_C0320_1
CNSC - Coolant Entry Style Code 7
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-04-01 14:26:00.000
STDNO - Standard Number ISO26623-2
Hand L
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
