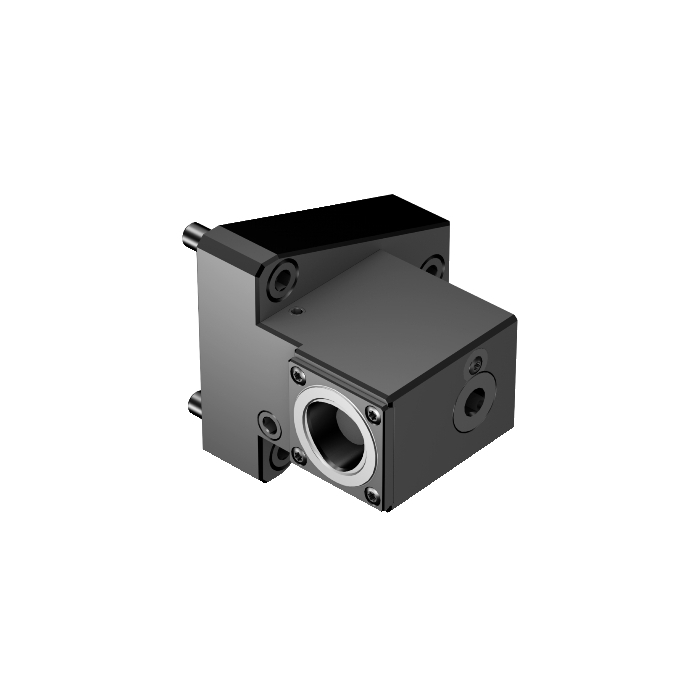

Sandvik Coromant C3-TRI-MA-D Manual clamping unit for Murata machines
R 24 457,05
inc. vat
In stock
SKU
7075533
Manual clamping unit for Murata machines
Reliable nationwide shipping
Delivery in 4 - 5 days
Manual clamping unit for Murata machines
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 22mm |
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 60mm |
| TQ - Torque | 35Nm |
| WT - Weight Of Item | 2kg |
| OAL - Overall Length | 91.5mm |
| OHX - Maximum Overhang | 60mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 40mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 79mm |
| OAH - Overall Height | 80mm |
| OAW - Overall Width | 93mm |
| ORDCODE | C3-TRI-MA-D |
| ADINTMS - Adaptive Interface Machine Direction | M_FLC02IN_CDN_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0320_1 |
| CNSC - Coolant Entry Style Code | 7 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-01 14:26:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| Hand | R |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
