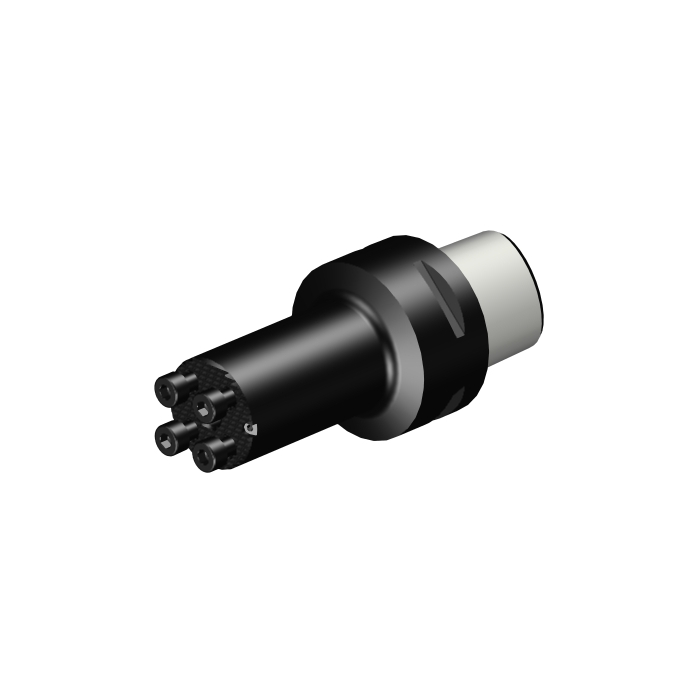

Sandvik Coromant C4-570-2C 25 064 Coromant Capto™ to CoroTurn™ SL adaptor

Name: Sandvik Coromant C4-570-2C 25 064 Coromant Capto™ to CoroTurn™ SL adaptor
SKU: 5728498
Price: 6978.20 ZAR
Availability: InStock

R 6 978,20 inc. vat

In stock

SKU

5728498

Coromant Capto® to CoroTurn® SL adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Coromant Capto® to CoroTurn® SL adaptor

More Information
CP - Coolant Pressure	7000000Pa
DFC - Functional Diameter	28mm
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	64mm
BD - Body Diameter	25mm
LB - Body Length	42mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	3.7Nm
WT - Weight Of Item	0.417kg
OAL - Overall Length	64mm
OHX - Maximum Overhang	64mm
BAWS - Workpiece Side Body Angle	0deg
OHN - Minimum Overhang	64mm
WF - Functional Width	0mm
HF - Functional Height	0mm
LPR - Protruding Length	64mm
ORDCODE	C4-570-2C 25 064
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SLHDSS_C0250_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	9
DCPS - Data Chip Provision Size	2
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 14:39:00.000
STDNO - Standard Number	ISO26623-1
Hand	N
DPC - Damping Property	False
DCP - Data Chip Provision	True
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
