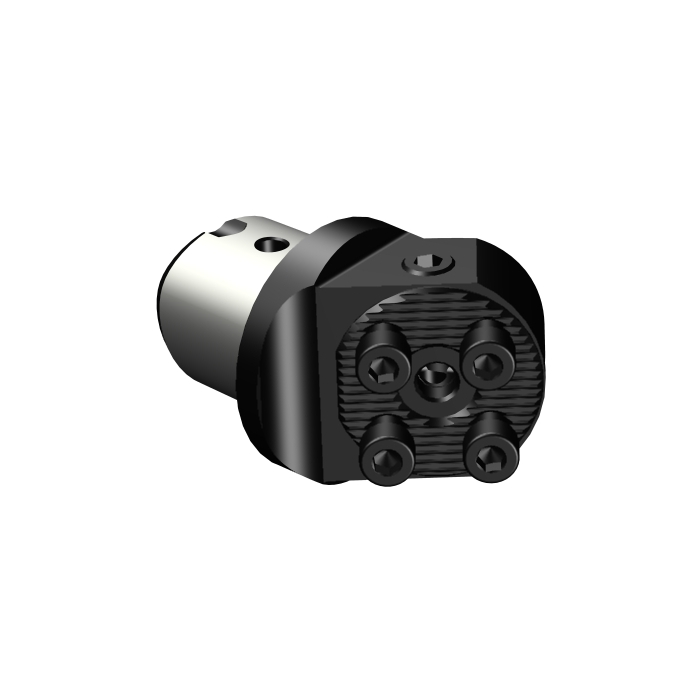

Sandvik Coromant C4-570-32-LX-045-T Coromant Capto™ to CoroTurn™ SL adaptor
R 6 265,20
inc. vat
In stock
SKU
5957888
Coromant Capto® to CoroTurn® SL adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to CoroTurn® SL adaptor
| CP - Coolant Pressure | 7000000Pa |
|---|---|
| DFC - Functional Diameter | 28mm |
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 22mm |
| TQ - Torque | 8.8Nm |
| WT - Weight Of Item | 0.261kg |
| OAL - Overall Length | 56.8mm |
| OHX - Maximum Overhang | 22mm |
| BAWS - Workpiece Side Body Angle | 45deg |
| WF - Functional Width | 1mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 33mm |
| ORDCODE | C4-570-32-LX-045-T |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS02_C0400_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSA2_C0320_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-03-09 07:32:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| Hand | L |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
