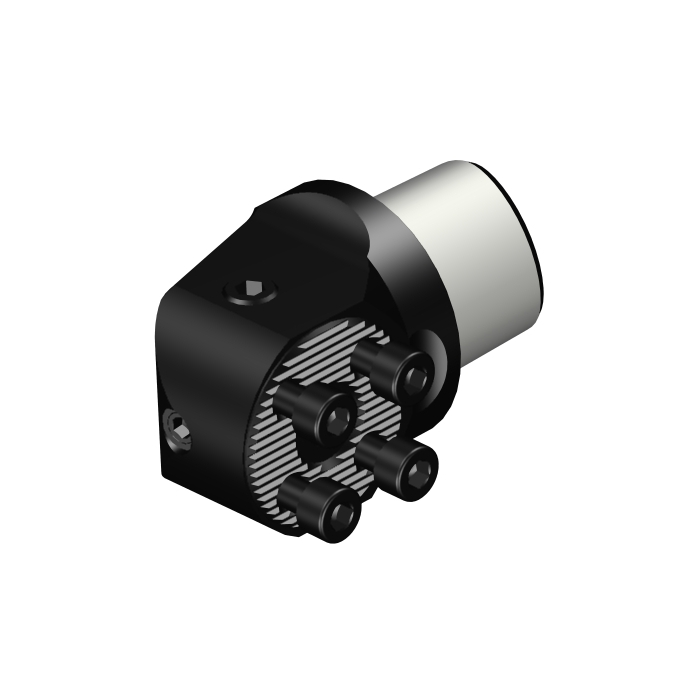

Sandvik Coromant C4-570-32-RF-T Coromant Capto™ to CoroTurn™ SL adaptor

Name: Sandvik Coromant C4-570-32-RF-T Coromant Capto™ to CoroTurn™ SL adaptor
SKU: 5957889
Price: 6283.60 ZAR
Availability: InStock

R 6 283,60 inc. vat

In stock

SKU

5957889

Coromant Capto® to CoroTurn® SL adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Coromant Capto® to CoroTurn® SL adaptor

More Information
CP - Coolant Pressure	7000000Pa
DFC - Functional Diameter	28mm
DCON - Connection Diameter	32mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	27mm
TQ - Torque	8.8Nm
WT - Weight Of Item	0.366kg
OAL - Overall Length	67.3mm
OHX - Maximum Overhang	27mm
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	20mm
HF - Functional Height	0mm
LPR - Protruding Length	43.3mm
ORDCODE	C4-570-32-RF-T
ADINTMS - Adaptive Interface Machine Direction	M_CCS02_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SLHDSA1_C0320_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-03-09 09:34:00.000
STDNO - Standard Number	ISO26623-1
Hand	R
DPC - Damping Property	False
DCP - Data Chip Provision	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
