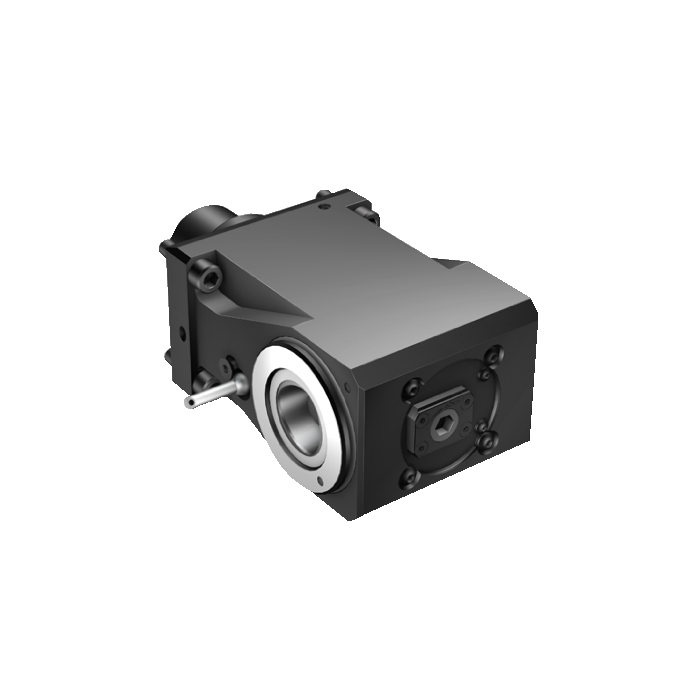

Sandvik Coromant C4-DNI-OK60B-I Driven tool holder for Okuma machines

Name: Sandvik Coromant C4-DNI-OK60B-I Driven tool holder for Okuma machines
SKU: 6251587
Price: 112604.55 ZAR
Availability: InStock

R 112 604,55 inc. vat

In stock

SKU

6251587

Driven tool holder for Okuma machines

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Driven tool holder for Okuma machines

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	28mm
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	85mm
TQ - Torque	40Nm
RPMX - Rotational Speed Maximum	60001/min
WT - Weight Of Item	12.3kg
OAL - Overall Length	241mm
OHX - Maximum Overhang	85mm
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	87mm
HF - Functional Height	0mm
LPR - Protruding Length	131mm
OAH - Overall Height	98mm
OAW - Overall Width	150mm
ORDCODE	C4-DNI-OK60B-I
ADINTMS - Adaptive Interface Machine Direction	M_FLC02FD_C060D_2
ADINTWS - Adaptive Interface Workpiece Direction	W_CCS02_C0400_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-04-06 07:56:00.000
STDNO - Standard Number	ISO26623-2
Hand	N
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
RIDOP - Reversed Rotation Direction Output Side	False
