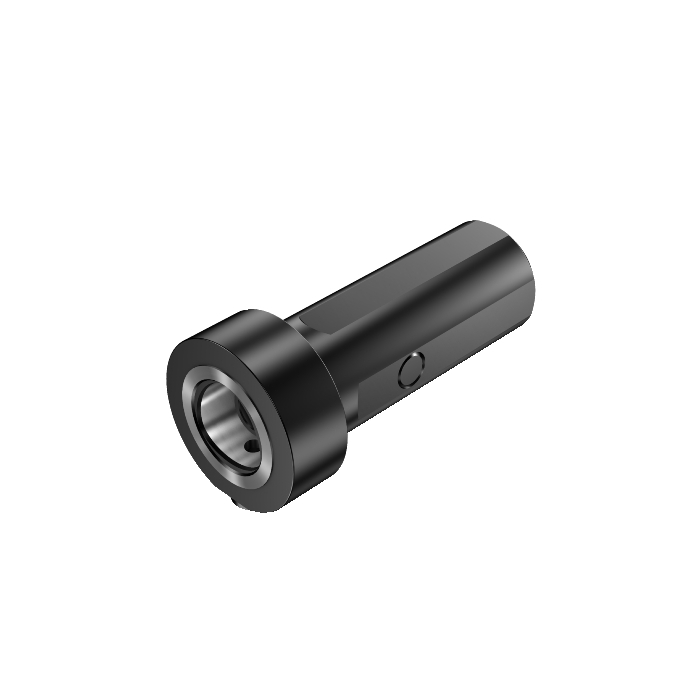

Sandvik Coromant C4-NC2000-12020-50 Cylindrical shank with flats to Coromant Capto™ clamping unit
R 16 021,80
inc. vat
In stock
SKU
5728602
Cylindrical shank with flats to Coromant Capto® clamping unit
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank with flats to Coromant Capto® clamping unit
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 28mm |
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 20mm |
| BD - Body Diameter | 51.5mm |
| LB - Body Length | 20mm |
| TQ - Torque | 50Nm |
| WT - Weight Of Item | 1.64kg |
| OAL - Overall Length | 140mm |
| OHX - Maximum Overhang | 20mm |
| LSC - Clamping Length | 120mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 0mm |
| HF - Functional Height | 0mm |
| H - Shank Height | 47mm |
| OAH - Overall Height | 51.5mm |
| OAW - Overall Width | 51.5mm |
| HRY - Lowest Point From Reference Plain | 28mm |
| ORDCODE | C4-NC2000-12020-50 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_G5000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0400_1 |
| CNSC - Coolant Entry Style Code | 2 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-01 14:18:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| Hand | N |
| CNT - Coolant Entry Thread Size | G 1/8-28 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
