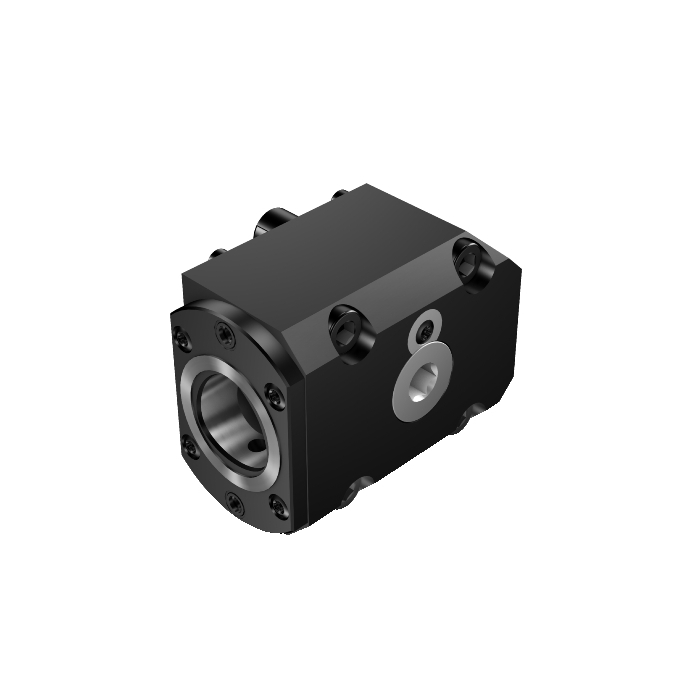

Sandvik Coromant C4-RC2090-24043A Manual clamping unit
R 20 918,50
inc. vat
Out of stock
SKU
5727841
Manual clamping unit
Reliable nationwide shipping
Delivery in 4 - 5 days
Manual clamping unit
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 28mm |
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 24mm |
| TQ - Torque | 50Nm |
| WT - Weight Of Item | 2.26kg |
| OAL - Overall Length | 48mm |
| OHX - Maximum Overhang | 24mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 43mm |
| HF - Functional Height | 0mm |
| H - Shank Height | 77mm |
| LPR - Protruding Length | 48mm |
| B - Shank Width | 86mm |
| OAH - Overall Height | 77mm |
| OAW - Overall Width | 86mm |
| TD - Thread Diameter | 8mm |
| ORDCODE | C4-RC2090-24043A |
| ADINTMS - Adaptive Interface Machine Direction | M_BLTC1_C1655_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0400_1 |
| CNSC - Coolant Entry Style Code | 6 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-01 14:18:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| Hand | R |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
