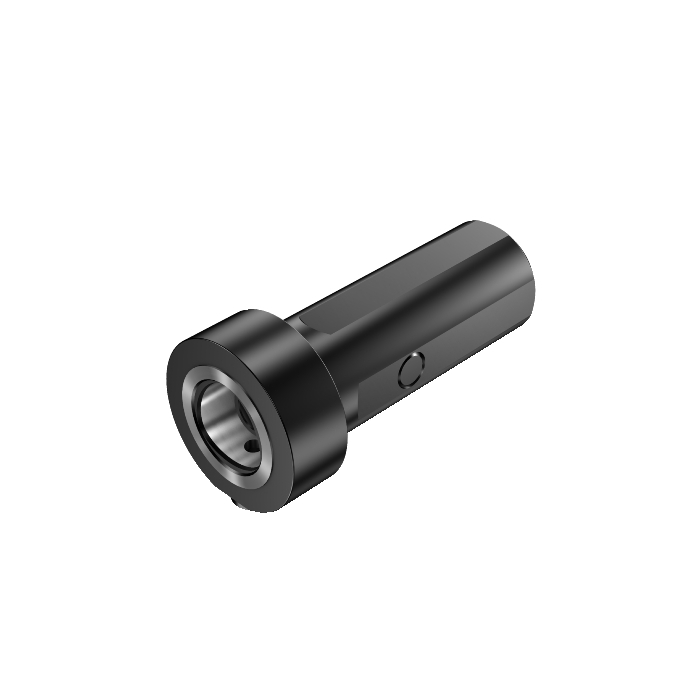

Sandvik Coromant C5-NC2000-12024-50 Cylindrical shank with flats to Coromant Capto™ clamping unit
Next
Sandvik Coromant C4-RC2090-24043A Manual clamping unit
Previous
![Sandvik Coromant C5-NC2000-12024-50 Cylindrical shank with flats to Coromant Capto™ clamping unit](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/434191f0e/sandvik-coromant-c5-nc2000-12024-50-cylindrical-shank-with-flats-to-coromant-captotm-clamping-unit.jpg)
![Sandvik Coromant C4-RC2090-24043A Manual clamping unit](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/4337136a5/sandvik-coromant-c4-rc2090-24043a-manual-clamping-unit.jpg)
R 17 692,75
inc. vat
In stock
SKU
5727928
Cylindrical shank with flats to Coromant Capto® clamping unit
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank with flats to Coromant Capto® clamping unit
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 35mm |
DCON - Connection Diameter | 50mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 24mm |
BD - Body Diameter | 61.5mm |
LB - Body Length | 24mm |
TQ - Torque | 70Nm |
WT - Weight Of Item | 2.133kg |
OAL - Overall Length | 144mm |
OHX - Maximum Overhang | 24mm |
LSC - Clamping Length | 120mm |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 0mm |
HF - Functional Height | 0mm |
H - Shank Height | 47mm |
OAH - Overall Height | 61.5mm |
OAW - Overall Width | 61.5mm |
HRY - Lowest Point From Reference Plain | 31mm |
ORDCODE | C5-NC2000-12024-A32 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_S2000_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0500_1 |
CNSC - Coolant Entry Style Code | 2 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-04-01 14:18:00.000 |
STDNO - Standard Number | ISO26623-2 |
Hand | N |
CNT - Coolant Entry Thread Size | G 1/8-28 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
