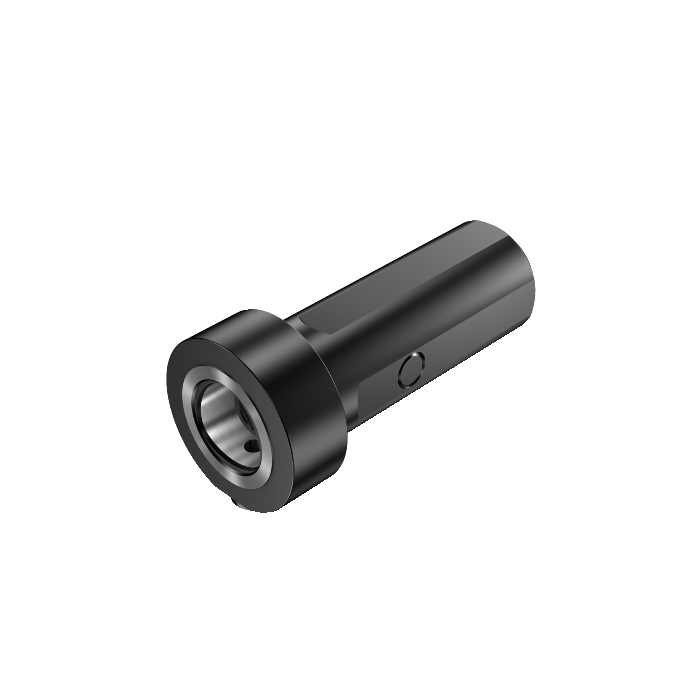

Sandvik Coromant C5-NC2000-12024-50 Cylindrical shank with flats to Coromant Capto™ clamping unit

Name: Sandvik Coromant C5-NC2000-12024-50 Cylindrical shank with flats to Coromant Capto™ clamping unit
SKU: 5727939
Price: 17692.75 ZAR
Availability: OutOfStock

Be the first to review this product

R 17 692,75 inc. vat

Out of stock

SKU

5727939

Cylindrical shank with flats to Coromant Capto® clamping unit

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Cylindrical shank with flats to Coromant Capto® clamping unit

More Information

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	35mm
DCON - Connection Diameter	50mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	24mm
BD - Body Diameter	61.5mm
LB - Body Length	24mm
TQ - Torque	70Nm
WT - Weight Of Item	2.12kg
OAL - Overall Length	144mm
OHX - Maximum Overhang	24mm
LSC - Clamping Length	120mm
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	0mm
HF - Functional Height	0mm
H - Shank Height	47mm
OAH - Overall Height	61.5mm
OAW - Overall Width	61.5mm
HRY - Lowest Point From Reference Plain	33mm
ORDCODE	C5-NC2000-12024-50
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_G5000_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CCS02_C0500_1
CNSC - Coolant Entry Style Code	2
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-04-01 14:18:00.000
STDNO - Standard Number	ISO26623-2
Hand	N
CNT - Coolant Entry Thread Size	G 1/8-28
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
