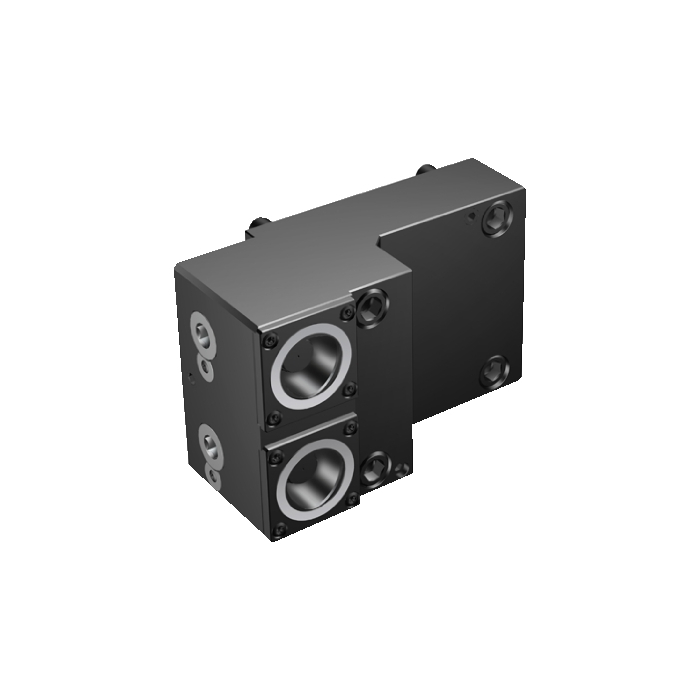

Sandvik Coromant C4-TLE-MS60A-YT Manual clamping unit for Mori Seiki machines

Name: Sandvik Coromant C4-TLE-MS60A-YT Manual clamping unit for Mori Seiki machines
SKU: 6039855
Price: 43044.50 ZAR
Availability: InStock

Be the first to review this product

R 43 044,50 inc. vat

In stock

SKU

6039855

Manual clamping unit for Mori Seiki machines

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Manual clamping unit for Mori Seiki machines

More Information

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	28mm
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	80mm
TQ - Torque	50Nm
WT - Weight Of Item	7.827kg
OAL - Overall Length	95mm
OHX - Maximum Overhang	80mm
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	82mm
HF - Functional Height	29mm
OAH - Overall Height	108mm
OAW - Overall Width	171mm
ORDCODE	C4-TLE-MS60A-YT
ADINTMS - Adaptive Interface Machine Direction	M_FLC02CN_C060N_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CCS02_C0400_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-04-01 14:20:00.000
STDNO - Standard Number	ISO26623-2
Hand	L
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
