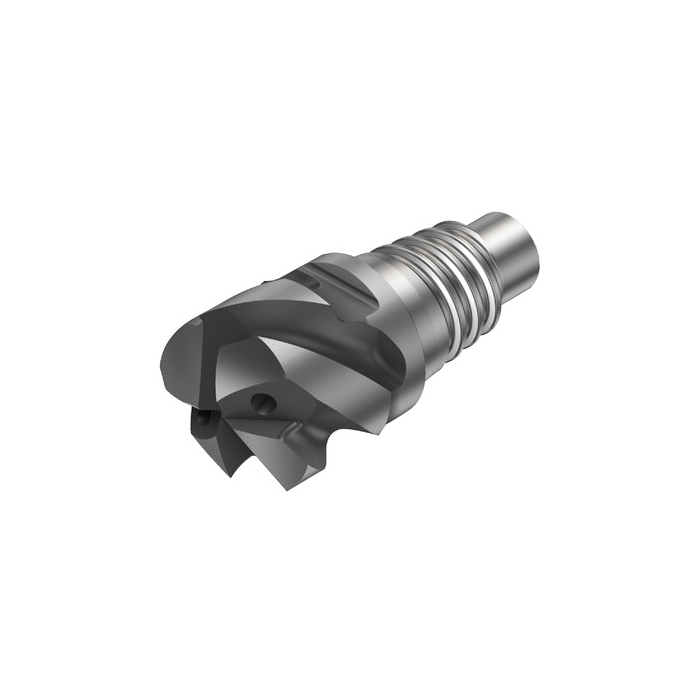

Sandvik Coromant A316-20HM450C07520P 1730 CoroMill™ 316 solid carbide head for High Feed Face milling

Name: Sandvik Coromant A316-20HM450C07520P 1730 CoroMill™ 316 solid carbide head for High Feed Face milling
SKU: 7611875
Price: 3337.30 ZAR
Availability: InStock

Be the first to review this product

R 3 337,30 inc. vat

In stock

SKU

7611875

CoroMill® 316 solid carbide head for High Feed Face milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 316 solid carbide head for High Feed Face milling

More Information

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	18.5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	21.3mm
BD - Body Diameter	18.491mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.093kg
OAL - Overall Length	40.8mm
OHX - Maximum Overhang	21.3mm
KAPR - Tool Cutting Edge Angle	31.67deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	9mm
LU - Usable Length	21.3mm
APMX - Depth Of Cut Maximum	1.2mm
DC - Cutting Diameter	19.05mm
DCF - Cutting Diameter Face Contact	8mm
DN - Neck Diameter	18.5mm
FHA - Flute Helix Angle	50deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	6deg
ULDR - Usable Length Diameter Ratio	1.11811023622
REEQ - Corner Radius Equivalent	2.971mm
ORDCODE	A316-20HM450C07520P 1730
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_B0200_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	2
CHANGEDATE	2022-05-10 17:05:00.000
Hand	R
Grade	1730
COATING	PVD AlTiN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	STRAIGHT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	False
