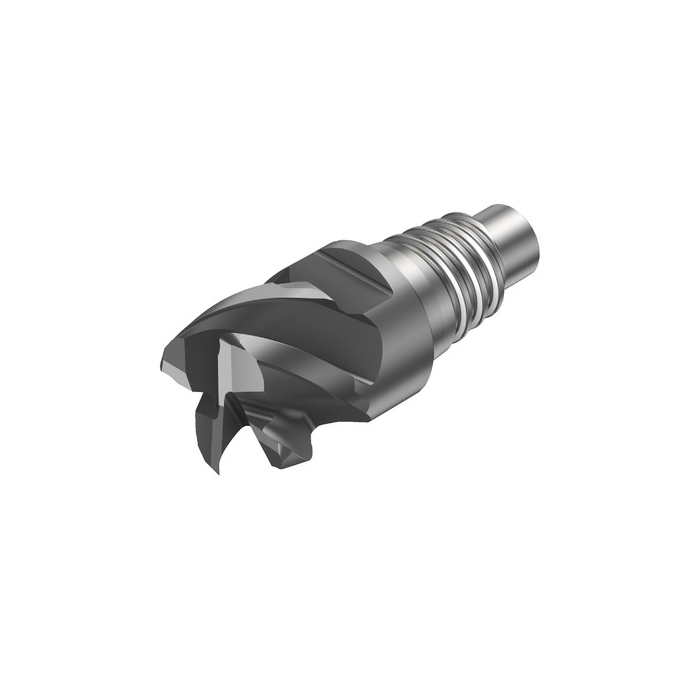

Sandvik Coromant A316-20SM350-07508P 1730 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling

R 2 780,70 inc. vat
In stock
SKU
7611876
CoroMill® 316 solid carbide head for Stable Multi-Operations milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for Stable Multi-Operations milling
More Information
DCON - Connection Diameter 18.5mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 21.3mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.109kg
OAL - Overall Length 40.8mm
OHX - Maximum Overhang 21.3mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5deg
RE - Corner Radius 0.7874mm
APMX - Depth Of Cut Maximum 10.5mm
DC - Cutting Diameter 19.05mm
DCF - Cutting Diameter Face Contact 17.4752mm
DN - Neck Diameter 18.5mm
FHA - Flute Helix Angle 50deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 13.5deg
ORDCODE A316-20SM350-07508P 1730
ADINTMS - Adaptive Interface Machine Direction M_SAT01_B0200_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 10:30:00.000
Hand R
Grade 1730
COATING PVD AlTiN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 3
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
