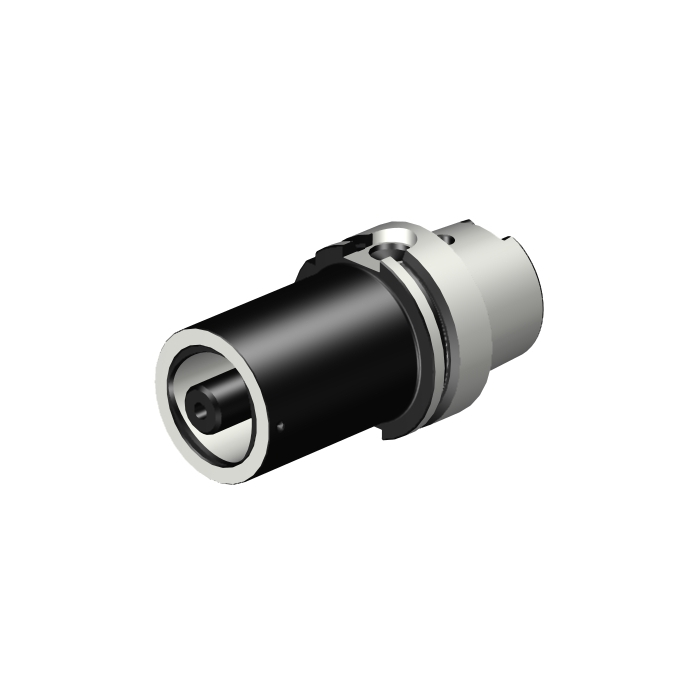

Sandvik Coromant C5-390.419-63 090 HSK to Coromant Capto™ adaptor
R 8 800,95
inc. vat
In stock
SKU
6078853
HSK to Coromant Capto® adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to Coromant Capto® adaptor
| CP - Coolant Pressure | 10000000Pa |
|---|---|
| DFC - Functional Diameter | 35mm |
| DCON - Connection Diameter | 50mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 90mm |
| BD - Body Diameter | 63mm |
| LB - Body Length | 90mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 95Nm |
| WT - Weight Of Item | 1.427kg |
| OAL - Overall Length | 122mm |
| OHX - Maximum Overhang | 90mm |
| ORDCODE | C5-390.419-63 090 |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK07_C0630_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS03_C0500_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-01-20 05:07:00.000 |
| STDLET - Standard Letter | T |
| STDNO - Standard Number | DIN69893-7 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
