R 10 185,55
inc. vat
Out of stock
SKU
7079914

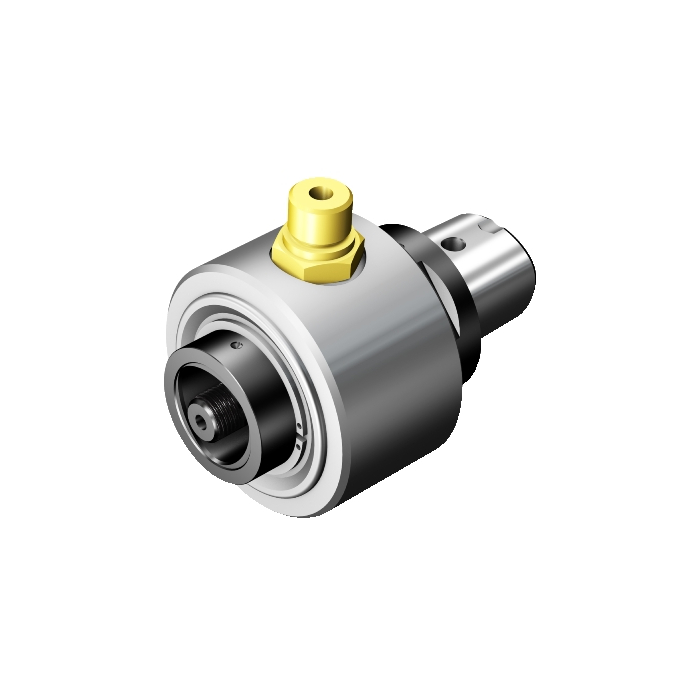

Coromant Capto® reduction adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® reduction adaptor
CP - Coolant Pressure | 1800000Pa |
---|---|
DFC - Functional Diameter | 28mm |
DCON - Connection Diameter | 40mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 90mm |
BD - Body Diameter | 78mm |
LB - Body Length | 90mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 55Nm |
RPMX - Rotational Speed Maximum | 63001/min |
WT - Weight Of Item | 1.958kg |
OAL - Overall Length | 120mm |
OHX - Maximum Overhang | 90mm |
ORDCODE | C5-391.02CCH-40 090 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CCS03_C0400_1 |
CNSC - Coolant Entry Style Code | 2 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2021-12-22 14:57:00.000 |
STDNO - Standard Number | ISO26623-2 |
CRNT - Coolant Radial Entry Thread Size | G 3/8" |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
