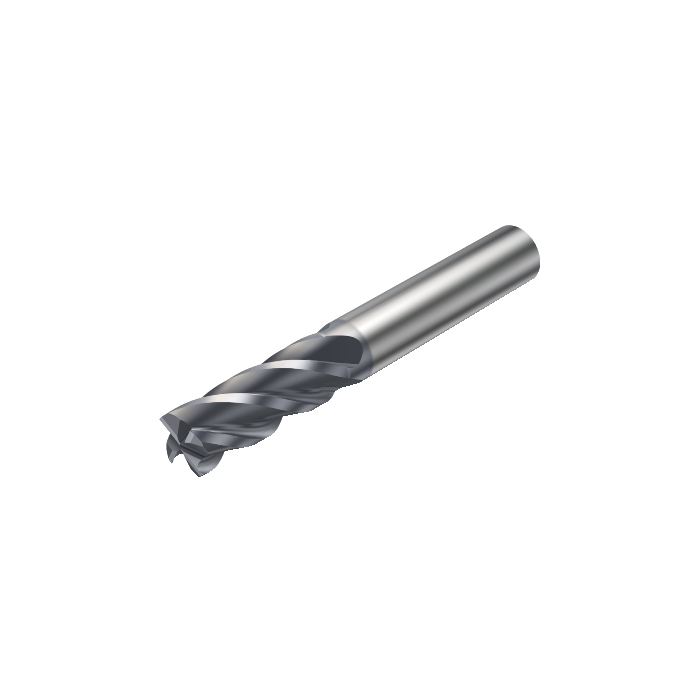

Sandvik Coromant 2P342-1400-PA 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

Name: Sandvik Coromant 2P342-1400-PA 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling
SKU: 6732594
Price: 4106.65 ZAR
Availability: InStock

Be the first to review this product

R 4 106,65 inc. vat

In stock

SKU

6732594

CoroMill® Plura solid carbide end mill for Heavy Duty milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy Duty milling

More Information

More Information
DCON - Connection Diameter	14mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	83mm
RPMX - Rotational Speed Maximum	331001/min
WT - Weight Of Item	0.16kg
OAL - Overall Length	83mm
OHX - Maximum Overhang	38mm
LSC - Clamping Length	45mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	7deg
LU - Usable Length	30mm
APMX - Depth Of Cut Maximum	30mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.15mm
DC - Cutting Diameter	14mm
DCF - Cutting Diameter Face Contact	13.7mm
FHA - Flute Helix Angle	42deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	10.5deg
ULDR - Usable Length Diameter Ratio	2.1428571428571
ORDCODE	2P342-1400-PA 1730
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1400_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:40:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1730
COATING	PVD AlCrN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	True
