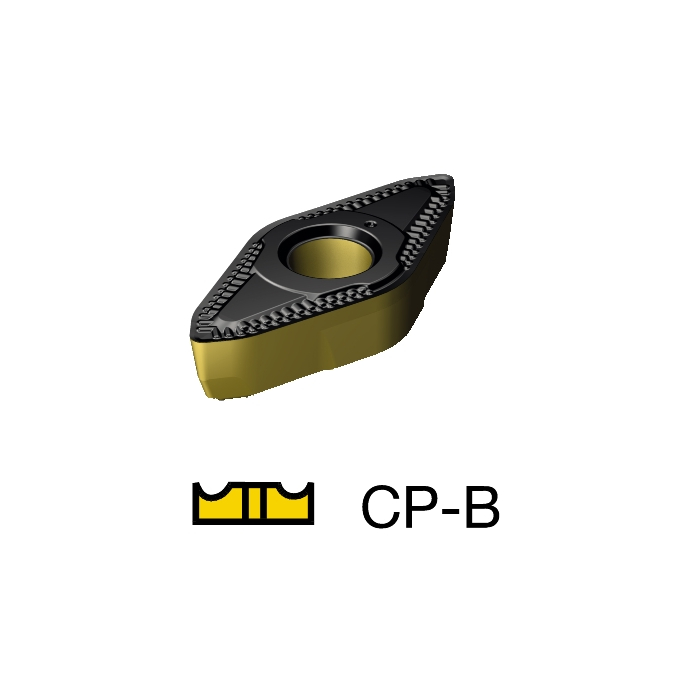

Sandvik Coromant C5-CP-25BL-35060-11B CoroTurn™ Prime cutting unit for turning
R 6 606,75
inc. vat
In stock
SKU
7100731
CoroTurn® Prime cutting unit for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® Prime cutting unit for turning
| CP - Coolant Pressure | 15000000Pa |
|---|---|
| DFC - Functional Diameter | 35mm |
| DCON - Connection Diameter | 50mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 60mm |
| TQ - Torque | 4Nm |
| WT - Weight Of Item | 614g |
| OAL - Overall Length | 90mm |
| OHX - Maximum Overhang | 60mm |
| KAPR - Tool Cutting Edge Angle | 25deg |
| RMPX - Maximum Ramping Angle | 23deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| WF - Functional Width | 35mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| IC - Inscribed Circle Diameter | 11mm |
| RE - Corner Radius | 0.79375mm |
| Insert Thickness | 5mm |
| APMX - Depth Of Cut Maximum | 3mm |
| ORDCODE | C5-CP-25BL-35060-11B |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-07-05 15:39:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| MTP - Clamping Type Code | D |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_TLB11_1 |
| Hand | L |
| MIID - Master Insert Identification | CP-B1108 |
| IFS - Insert Mounting Style Code | 2 |
| SSC - Insert Seat Size Code | CP-B11 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
