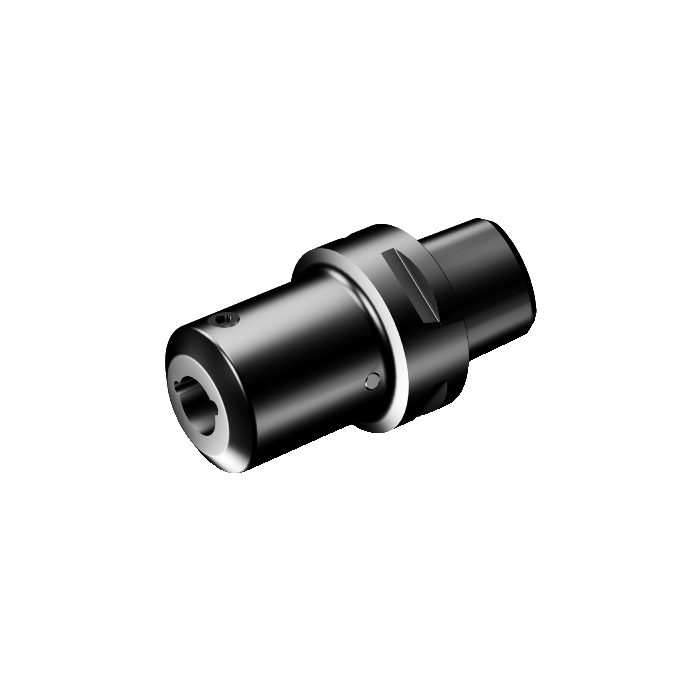

Sandvik Coromant C5-CXS-49-06 Coromant Capto™ to CoroTurn™ XS adaptor
R 6 138,70
inc. vat
In stock
SKU
6145459
Coromant Capto® to CoroTurn® XS adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to CoroTurn® XS adaptor
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DFC - Functional Diameter | 35mm |
| DCON - Connection Diameter | 6mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 49mm |
| BD - Body Diameter | 23.5mm |
| LB - Body Length | 49mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 7Nm |
| WT - Weight Of Item | 0.597kg |
| OAL - Overall Length | 79mm |
| OHX - Maximum Overhang | 49mm |
| LSC - Clamping Length | 19.3mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| OHN - Minimum Overhang | 49mm |
| WF - Functional Width | 1.95mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 49mm |
| ORDCODE | C5-CXS-49-06 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SIMA_F6000_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-21 01:44:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| Hand | N |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
