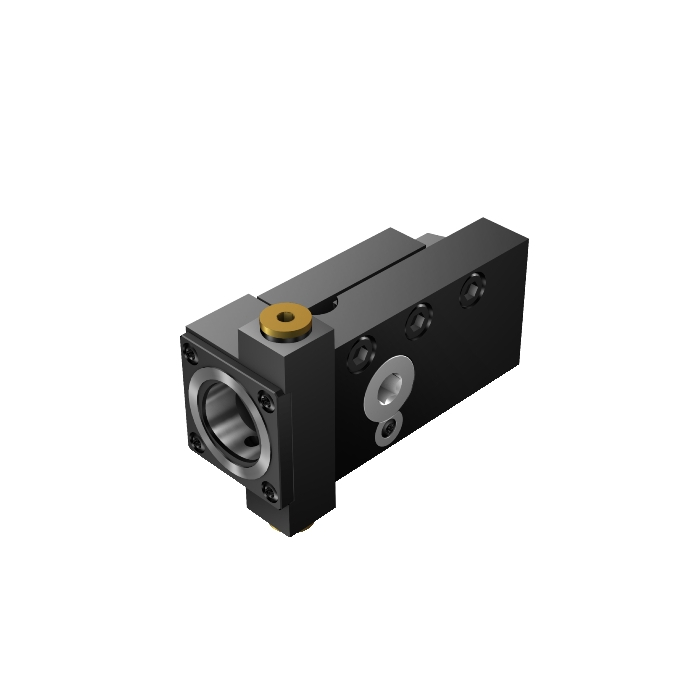

Sandvik Coromant C5-LC2085-6464 Rectangular shank to Coromant Capto™ clamping unit
R 17 692,75
inc. vat
In stock
SKU
5728041
Rectangular shank to Coromant Capto® clamping unit
Reliable nationwide shipping
Delivery in 4 - 5 days
Rectangular shank to Coromant Capto® clamping unit
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 35mm |
| DCON - Connection Diameter | 50mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 146.35mm |
| TQ - Torque | 70Nm |
| WT - Weight Of Item | 4.52kg |
| OAL - Overall Length | 146.35mm |
| OHX - Maximum Overhang | 36mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 32mm |
| HF - Functional Height | 32mm |
| H - Shank Height | 64mm |
| B - Shank Width | 32mm |
| OAH - Overall Height | 72mm |
| OAW - Overall Width | 64mm |
| ORDCODE | C5-LC2085-6464 |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A6432_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0500_1 |
| CNSC - Coolant Entry Style Code | 2 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-01 14:18:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| Hand | L |
| CNT - Coolant Entry Thread Size | G 1/8-28 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
