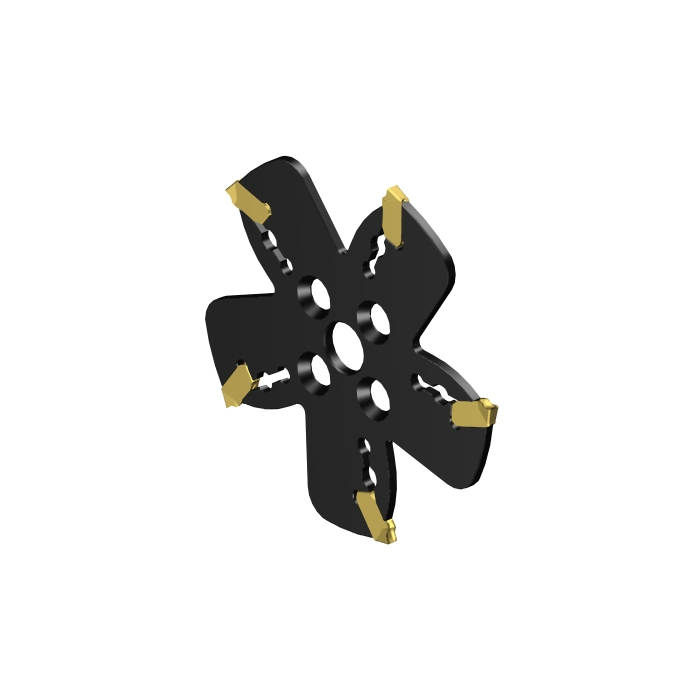

Sandvik Coromant AQD-FC076X10-M CoroMill™ QD indexable grooving & parting off cutter

Name: Sandvik Coromant AQD-FC076X10-M CoroMill™ QD indexable grooving & parting off cutter
SKU: 6657553
Price: 12911.05 ZAR
Availability: InStock

Be the first to review this product

R 12 911,05 inc. vat

In stock

SKU

6657553

CoroMill® QD indexable grooving and parting off cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® QD indexable grooving and parting off cutter

More Information

More Information
CP - Coolant Pressure	5000000Pa
DCON - Connection Diameter	10mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	2.195mm
RPMX - Rotational Speed Maximum	51001/min
WT - Weight Of Item	0.04kg
OAL - Overall Length	2.39mm
OHX - Maximum Overhang	2.195mm
DBC - Diameter Bolt Circle	22mm
KAPR - Tool Cutting Edge Angle	90deg
Insert Thickness	3.1mm
CW - Cutting Width	2.39mm
CDX - Cutting Depth Maximum	22.1mm
DC - Cutting Diameter	76.2mm
ORDCODE	AQD-FC076X10-M
ADINTMS - Adaptive Interface Machine Direction	M_FDAC24_C0X10_1
CNSC - Coolant Entry Style Code	4
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-01-17 11:18:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NOF_1
Hand	R
MIID - Master Insert Identification	QD-NF-0239-020E-PM
SSC - Insert Seat Size Code	F
CICT - Cutting Item Count	5
ZEFP - Peripheral Effective Cutting Edge Count	5
DRVCT - Drive Count	0
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
