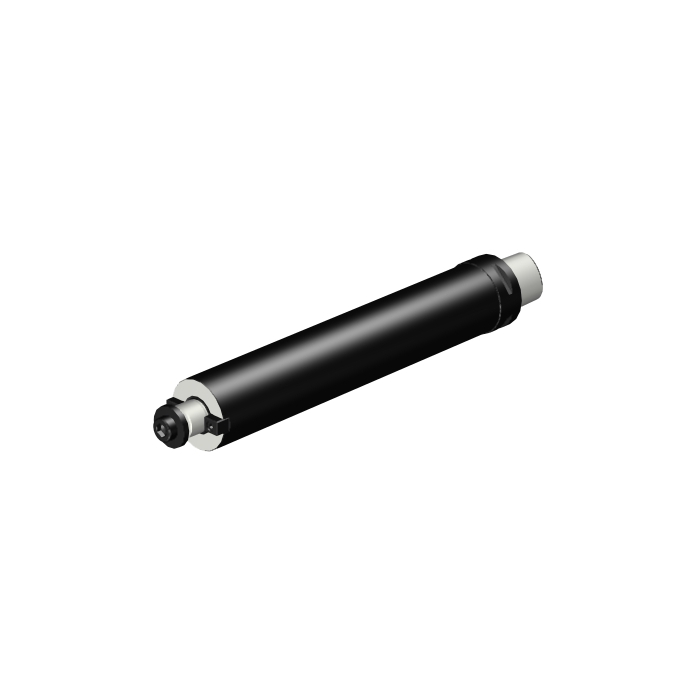

Sandvik Coromant C5-Q22D-048-270 Coromant Capto™ to damped arbor adaptor

Name: Sandvik Coromant C5-Q22D-048-270 Coromant Capto™ to damped arbor adaptor
SKU: 7092073
Price: 92303.60 ZAR
Availability: InStock

R 92 303,60 inc. vat

In stock

SKU

7092073

Coromant Capto® to damped arbor adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Coromant Capto® to damped arbor adaptor

More Information
CP - Coolant Pressure	7000000Pa
DFC - Functional Diameter	35mm
DCON - Connection Diameter	22mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	270mm
BD - Body Diameter	50mm
LB - Body Length	270mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	45Nm
RPMX - Rotational Speed Maximum	70001/min
WT - Weight Of Item	4.8kg
OAL - Overall Length	300mm
OHX - Maximum Overhang	270mm
LSC - Clamping Length	16mm
ORDCODE	C5-Q22D-048-270
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0500_1
ADINTWS - Adaptive Interface Workpiece Direction	W_FDA1AB1_G2200_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	4
BMC - Body Material Code	1
CHANGEDATE	2022-05-23 17:49:00.000
STDNO - Standard Number	ISO26623-1
DPC - Damping Property	True
DCP - Data Chip Provision	False
BBD - Balanced By Design	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
