Sandvik Coromant C5-SRDCN-00060-12A CoroTurn™ 107 cutting unit for turning

Name: Sandvik Coromant C5-SRDCN-00060-12A CoroTurn™ 107 cutting unit for turning
SKU: 5728351
Price: 4404.50 ZAR
Availability: InStock

Be the first to review this product

R 4 404,50 inc. vat

In stock

SKU

5728351

CoroTurn® 107 cutting unit for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 cutting unit for turning

More Information

More Information
CP - Coolant Pressure	4000000Pa
DFC - Functional Diameter	35mm
DCON - Connection Diameter	50mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	60mm
TQ - Torque	3Nm
WT - Weight Of Item	508g
OAL - Overall Length	90mm
OHX - Maximum Overhang	60mm
RMPX - Maximum Ramping Angle	90deg
DMIN - Minimum Bore Diameter	165mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	6mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	12mm
RE - Corner Radius	6mm
Insert Thickness	4.7625mm
LU - Usable Length	28mm
ORDCODE	C5-SRDCN-00060-12A
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0500_1
CNSC - Coolant Entry Style Code	2
CXSC - Coolant Exit Style Code	6
BMC - Body Material Code	1
CHANGEDATE	2022-08-15 14:41:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_RC1204M_2
Hand	N

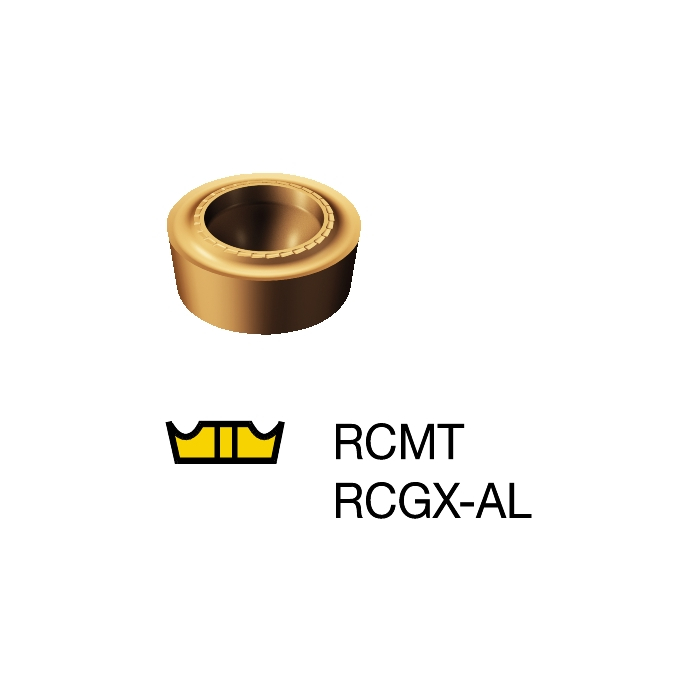

MIID - Master Insert Identification	RCMT 12 04 M0
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	12
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
