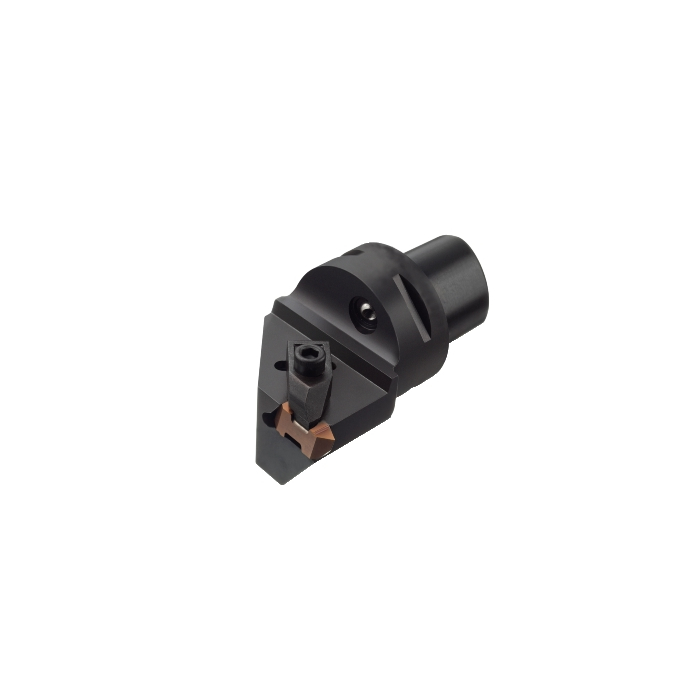

Sandvik Coromant C5-TLER-35060-3 Top Lok cutting unit for parting and grooving
Next
Sandvik Coromant C6-NF123J25-00082B CoroCut™ 1-2 cutting unit for parting and grooving
Previous
![Sandvik Coromant C5-TLER-35060-3 Top Lok cutting unit for parting and grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/439851d99/sandvik-coromant-c5-tler-35060-3-top-lok-cutting-unit-for-parting-and-grooving.jpg)
![Sandvik Coromant C6-NF123J25-00082B CoroCut™ 1-2 cutting unit for parting and grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/43965c9bb/sandvik-coromant-c6-nf123j25-00082b-corocuttm-1-2-cutting-unit-for-parting-and-grooving.jpg)
R 5 463,65
inc. vat
In stock
SKU
5729224
Top Lok cutting unit for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
Top Lok cutting unit for parting and grooving
CP - Coolant Pressure | 1000000Pa |
---|---|
DFC - Functional Diameter | 35mm |
DCON - Connection Diameter | 50mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 59.9948mm |
TQ - Torque | 5Nm |
WT - Weight Of Item | 0.891kg |
OAL - Overall Length | 89.9948mm |
OHX - Maximum Overhang | 59.9948mm |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 35.0012mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 8.7376mm |
CDX - Cutting Depth Maximum | 4.8mm |
W1 - Insert Width | 4.953mm |
ORDCODE | C5-TLEL-35060-3 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 5 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2021-12-20 23:16:00.000 |
STDNO - Standard Number | ISO26623-1 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CL3R_1 |
Hand | L |
MIID - Master Insert Identification | TLG-3189R |
SSC - Insert Seat Size Code | 3 |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
