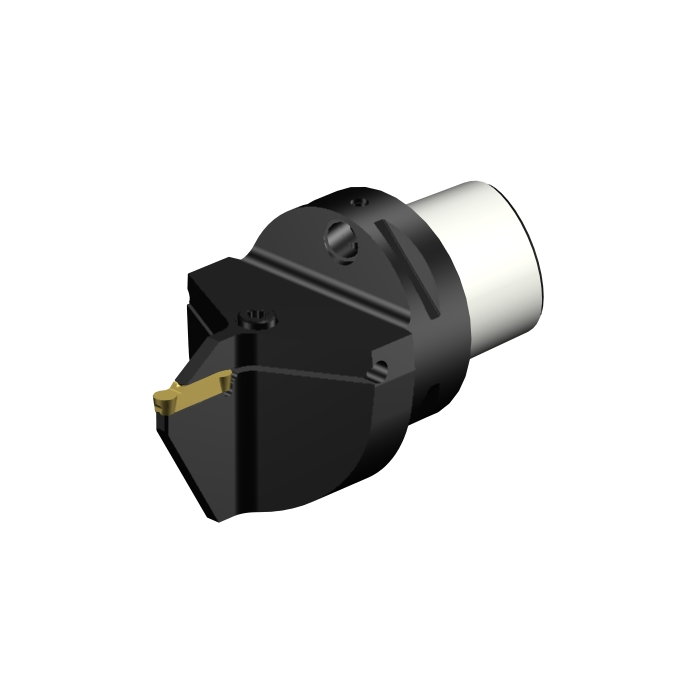

Sandvik Coromant C6-NF123J25-00082B CoroCut™ 1-2 cutting unit for parting and grooving

Name: Sandvik Coromant C6-NF123J25-00082B CoroCut™ 1-2 cutting unit for parting and grooving
SKU: 5729190
Price: 6322.70 ZAR
Availability: InStock

Be the first to review this product

R 6 322,70 inc. vat

In stock

SKU

5729190

CoroCut® 1-2 cutting unit for parting and grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 cutting unit for parting and grooving

More Information

More Information
CP - Coolant Pressure	4000000Pa
DFC - Functional Diameter	44mm
DCON - Connection Diameter	63mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	82mm
TQ - Torque	6Nm
WT - Weight Of Item	1.315kg
OAL - Overall Length	120mm
OHX - Maximum Overhang	82mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	3mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.35mm
CW - Cutting Width	5mm
CDX - Cutting Depth Maximum	25mm
ORDCODE	C6-NF123J25-00082B
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0630_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	5
BMC - Body Material Code	1
CHANGEDATE	2022-05-16 16:53:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCJ2_8
Hand	N
MIID - Master Insert Identification	N123J2-0500-0004-TF
SSC - Insert Seat Size Code	J
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
