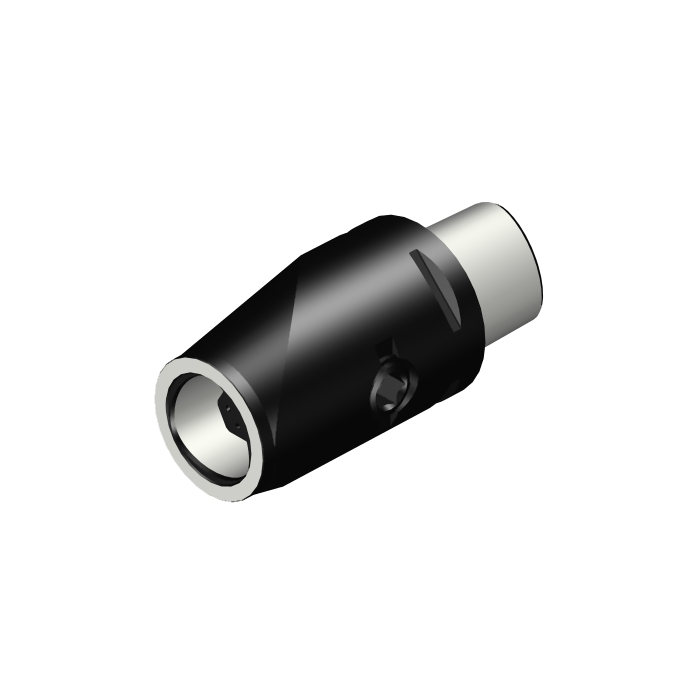

Sandvik Coromant C6-QC-C5-100R07 Coromant Capto™ offset reduction adaptor with Quick change

R 14 446,30 inc. vat
In stock
SKU
6884855
Coromant Capto® offset reduction adaptor with Quick change
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® offset reduction adaptor with Quick change
More Information
CP - Coolant Pressure 15000000Pa
DFC - Functional Diameter 44mm
DCON - Connection Diameter 50mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 100mm
TQ - Torque 70Nm
WT - Weight Of Item 2.05kg
OAL - Overall Length 138mm
OHX - Maximum Overhang 100mm
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 6.5mm
HF - Functional Height 0mm
LPR - Protruding Length 100mm
ORDCODE C6-QC-C5-100R07
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0630_1
ADINTWS - Adaptive Interface Workpiece Direction W_CCS02_C0500_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 1
CHANGEDATE 2022-07-19 06:10:00.000
STDNO - Standard Number ISO26623-2
Hand R
DPC - Damping Property False
DCP - Data Chip Provision False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
