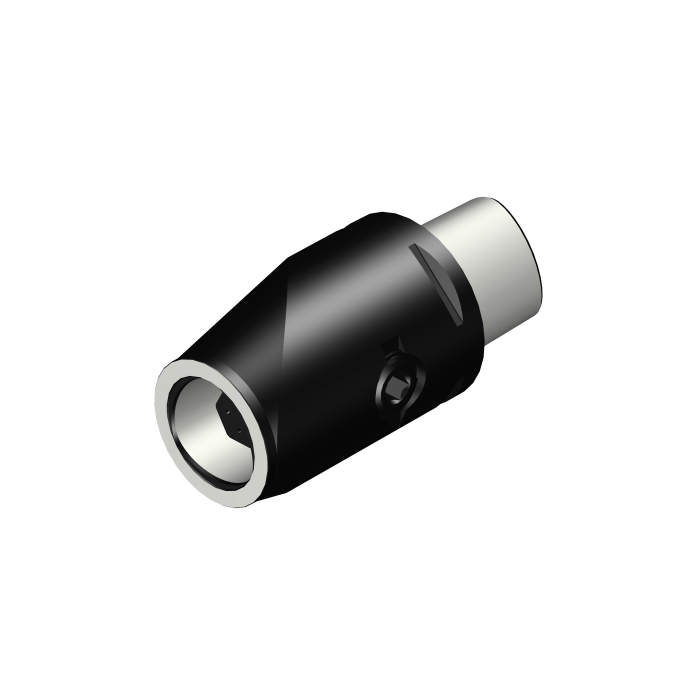

Sandvik Coromant C8-QC-C6-120R09 Coromant Capto™ offset reduction adaptor with Quick change
R 15 702,10
inc. vat
In stock
SKU
6884854
Coromant Capto® offset reduction adaptor with Quick change
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® offset reduction adaptor with Quick change
| CP - Coolant Pressure | 15000000Pa |
|---|---|
| DFC - Functional Diameter | 55mm |
| DCON - Connection Diameter | 63mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 120mm |
| TQ - Torque | 90Nm |
| WT - Weight Of Item | 4.098kg |
| OAL - Overall Length | 168mm |
| OHX - Maximum Overhang | 120mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 8.5mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 120mm |
| ORDCODE | C8-QC-C6-120R09 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0800_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0630_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-07-19 06:10:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| Hand | R |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
