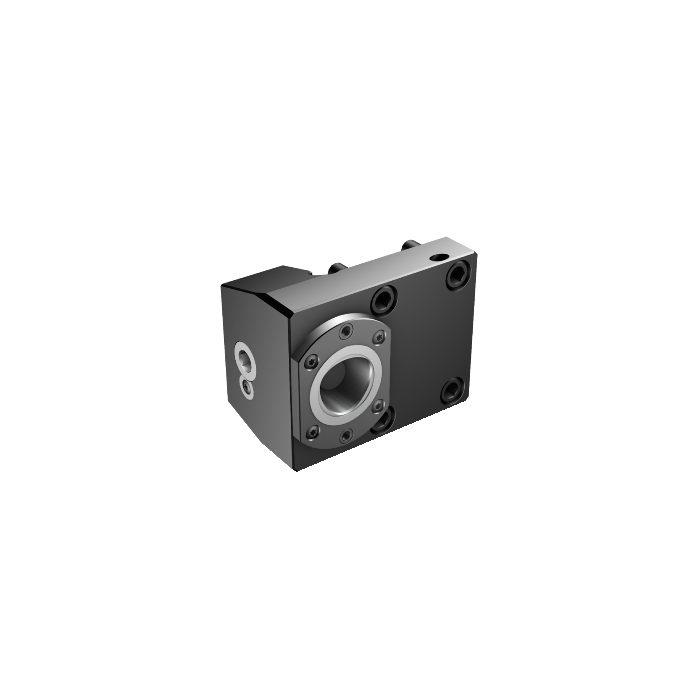

Sandvik Coromant C6-TLE-BT85A Manual clamping unit for BMT turrets
R 37 501,50
inc. vat
In stock
SKU
6144302
Manual clamping unit for BMT turrets
Reliable nationwide shipping
Delivery in 4 - 5 days
Manual clamping unit for BMT turrets
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 44mm |
| DCON - Connection Diameter | 63mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 35mm |
| TQ - Torque | 90Nm |
| WT - Weight Of Item | 12kg |
| OAL - Overall Length | 102mm |
| OHX - Maximum Overhang | 35mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 43mm |
| HF - Functional Height | 0mm |
| OAH - Overall Height | 124mm |
| OAW - Overall Width | 225mm |
| ORDCODE | C6-TLE-BT85A |
| ADINTMS - Adaptive Interface Machine Direction | M_FLC02BN_C085N_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0630_1 |
| CNSC - Coolant Entry Style Code | 7 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-01 14:22:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| Hand | L |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
