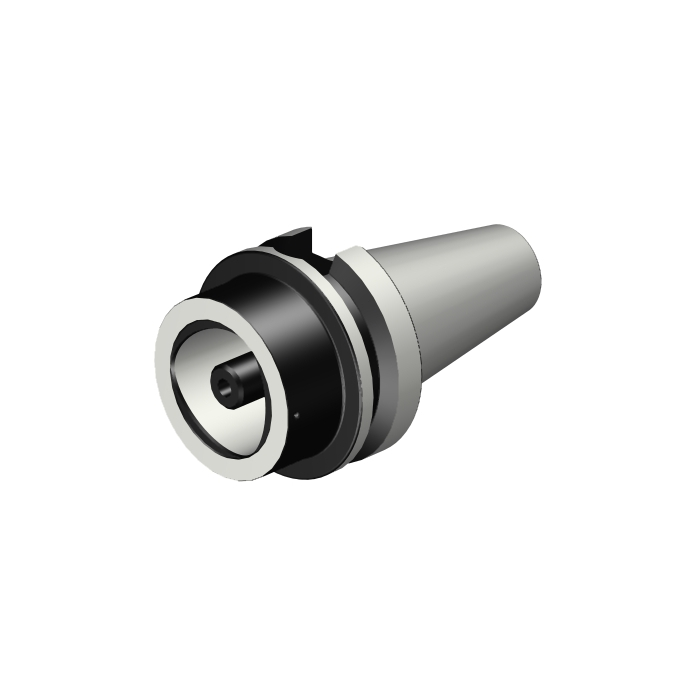

Sandvik Coromant C8-390.562-50 070 BIG-PLUS MAS-BT to Coromant Capto™ adaptor
Next
Sandvik Coromant C8-390.540-50 070A BIG-PLUS ISO to Coromant Capto™ adaptor
Previous
![Sandvik Coromant C8-390.562-50 070 BIG-PLUS MAS-BT to Coromant Capto™ adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/44374fe71/sandvik-coromant-c8-390-562-50-070-big-plus-mas-bt-to-coromant-captotm-adaptor.jpg)
![Sandvik Coromant C8-390.540-50 070A BIG-PLUS ISO to Coromant Capto™ adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/443720f07/sandvik-coromant-c8-390-540-50-070a-big-plus-iso-to-coromant-captotm-adaptor.jpg)
R 11 255,05
inc. vat
In stock
SKU
5729996
BIG-PLUS MAS-BT to Coromant Capto® adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
BIG-PLUS MAS-BT to Coromant Capto® adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 55mm |
DCON - Connection Diameter | 80mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 70mm |
BD - Body Diameter | 100mm |
LB - Body Length | 70mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 170Nm |
WT - Weight Of Item | 4.183kg |
OAL - Overall Length | 171.8mm |
OHX - Maximum Overhang | 70mm |
ORDCODE | C8-390.558-50 070 |
ADINTMS - Adaptive Interface Machine Direction | M_SKG51BP_C0500_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CCS03_C0800_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
CRKS - Connection Retention Knob Thread Size | M24 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-20 05:20:00.000 |
STDLET - Standard Letter | AD |
STDNO - Standard Number | MAS403-BT (BIG-PLUS) |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
